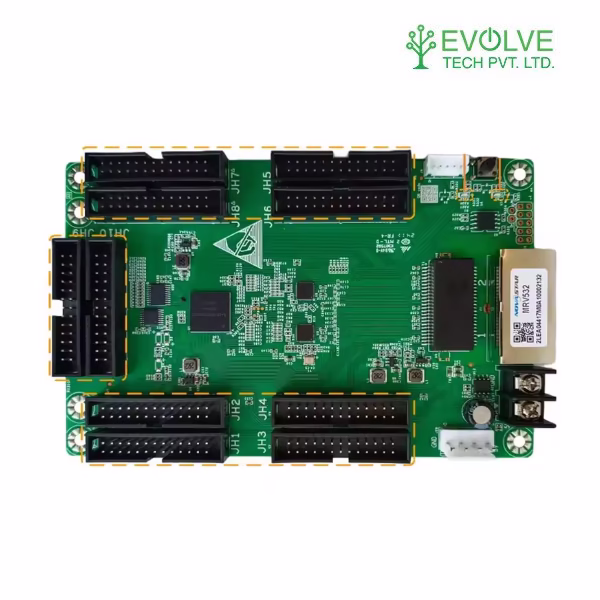

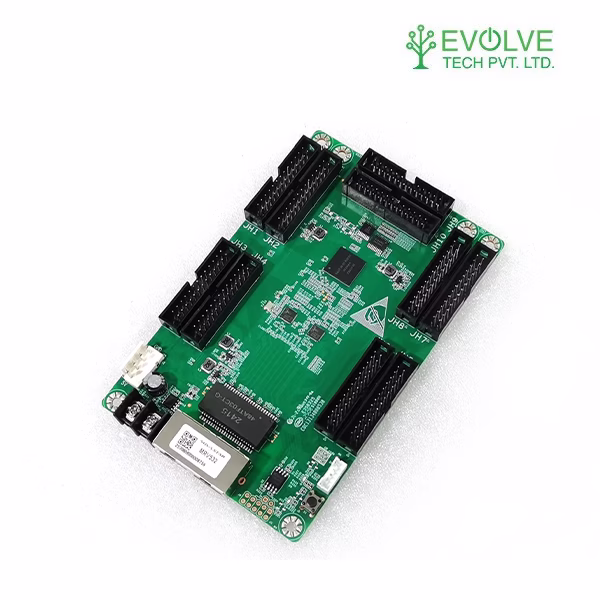

Novastar MRV532 Receiving Card

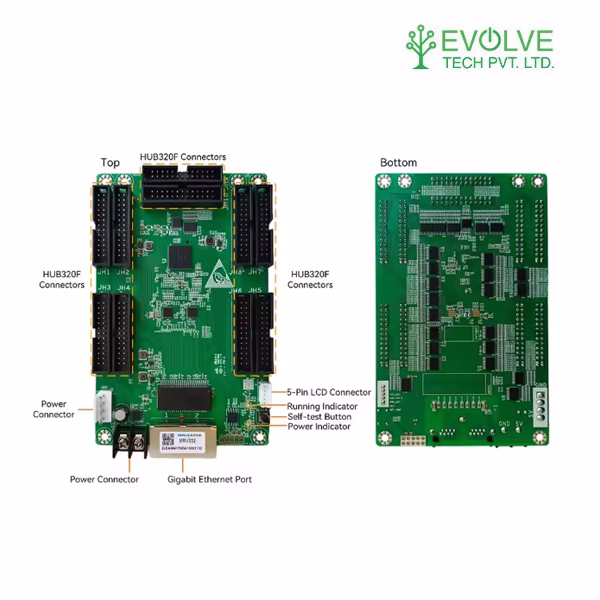

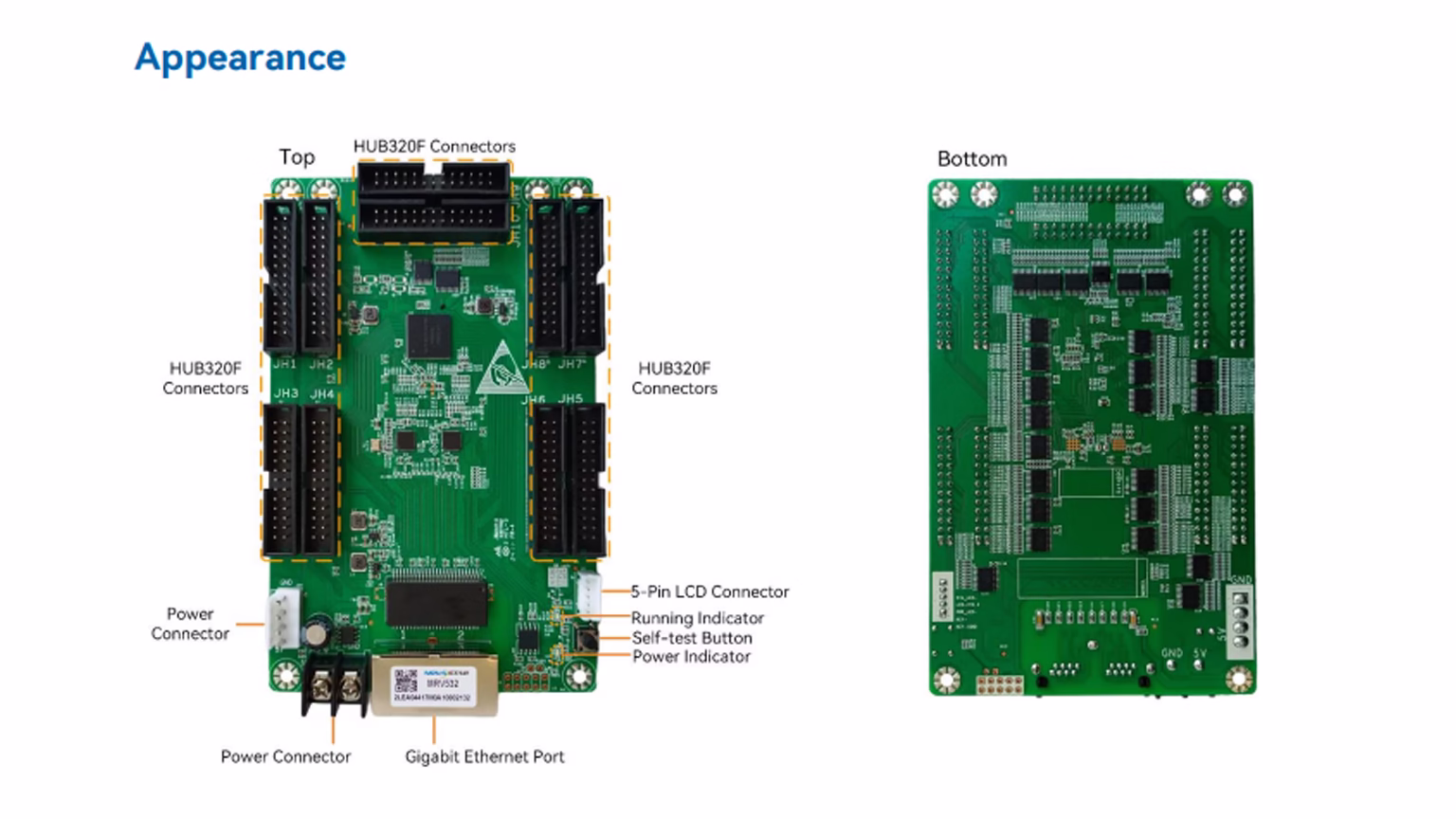

The NovaStar MRV532 is a powerful LED receiving card designed for fine-pitch and high-quality LED displays. Each card supports up to 512×512 pixels at 60Hz (8-bit) and ensures smooth visuals with HDR10/HLG, 18-bit+ grayscale, and pixel-level brightness/chroma calibration. It offers features like low latency (1 frame), 90° rotation, seam correction, and module auto-calibration for perfect uniformity. With 10 HUB320F connectors and Ethernet cascading, it integrates easily into cabinets. The MRV532 also supports dual backup, loop backup, and real-time monitoring of temperature, voltage, and communication status. Operating between –20 °C to +70 °C, it is reliable for both indoor and outdoor screens, making it ideal for professional displays requiring stability, accuracy, and superior image performance.
Load per card512 × 512 @60Hz (8-bit)
OutputsGigabit Ethernet in/cascade
Other Novastar receiving cards Compare all →
MRV532Rs. 5,900This oneDH7512sRs. 4,030DH7508Rs. 3,640
PriceRs. 5,900 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Electrical Specifications 3
Input voltageDC 3.8 V to 5.5 V
Rated current0.5 A
Rated power consumption2.5 W
Operating Environment 2
Temperature–20°C to +70°C
Humidity10% RH to 90% RH, non-condensing
Storage Environment 2
Temperature–25°C to +125°C
Humidity0% RH to 95% RH, non-condensing
Physical Specifications 2

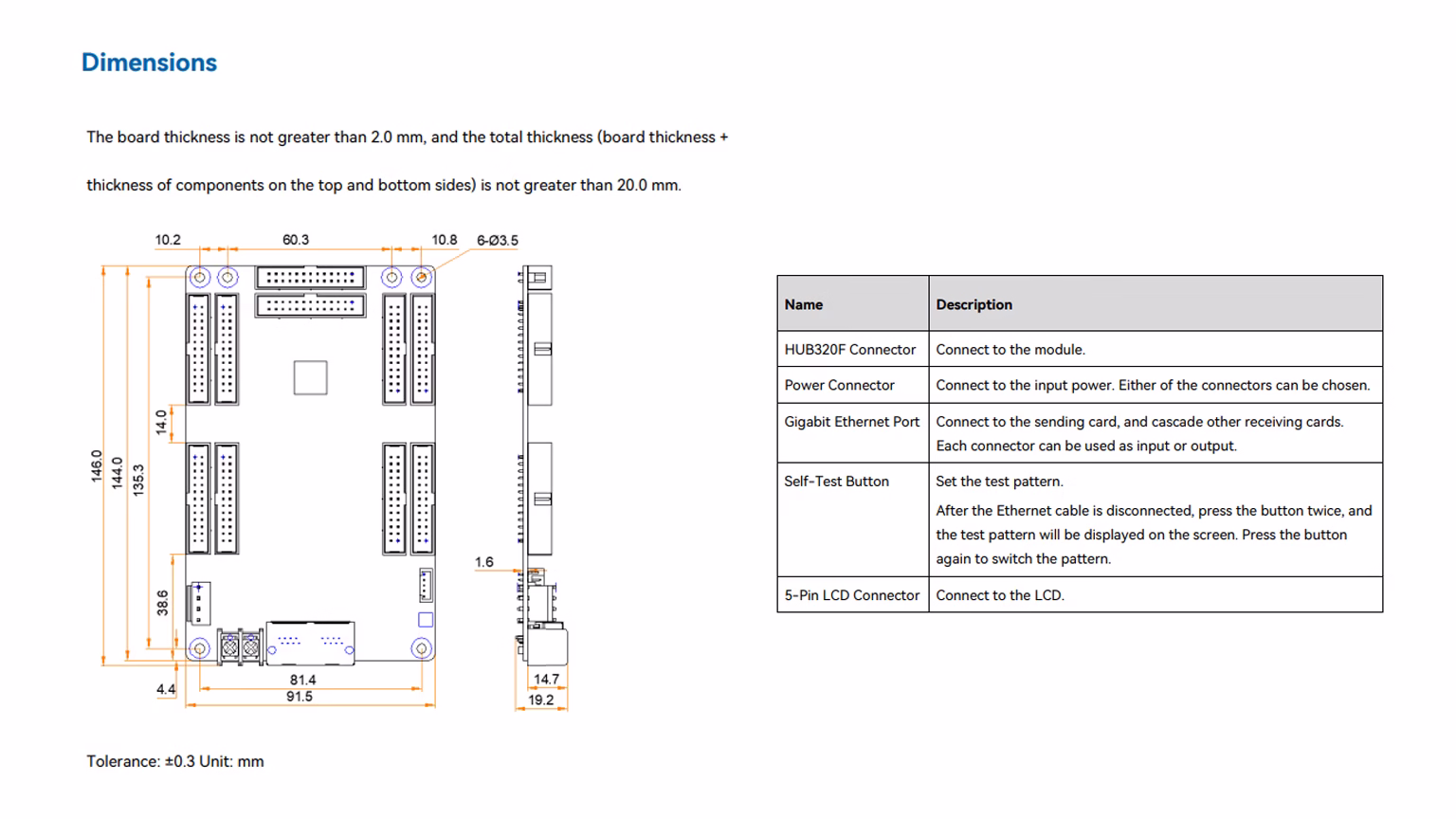

Dimensions146.0 mm × 91.5 mm × 19.2 mm
Net weight99.5 g Note: It is the weight of a single receiving card only.
Packing Information 2
Packing specificationsAn antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards.
Packing box dimensions625.0 mm × 180.0 mm × 470.0 mm
Display 1
Maximum Resolution512×512@60Hz (8bit video sources) 512×384@60Hz (10bit or 12bit video sources)

MRV532

Compare

Other pitches in Novastar

Novastar MRV532 Receiving CardThis productNovastar Dsp 1000 proNovastar Dsp 600 proNovastar 4k-prime pro
Pixel pitch————
Best viewed from————
Brightness————
EnvironmentProcessorProcessorProcessorProcessor
PriceRs. 5,900 per unitRs. 425,000 per unitRs. 268,000 per unitRs. 726,000 per unit
Questions buyers ask

Before you request a quote

Which processor does my LED wall need?
It depends on the panel resolution and the number of receiving cards. Tell us the wall size and pitch and we match the sending card or all-in-one processor.
Do you configure it?
Yes — every processor we sell is configured and tested with the wall before handover.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
