Novastar

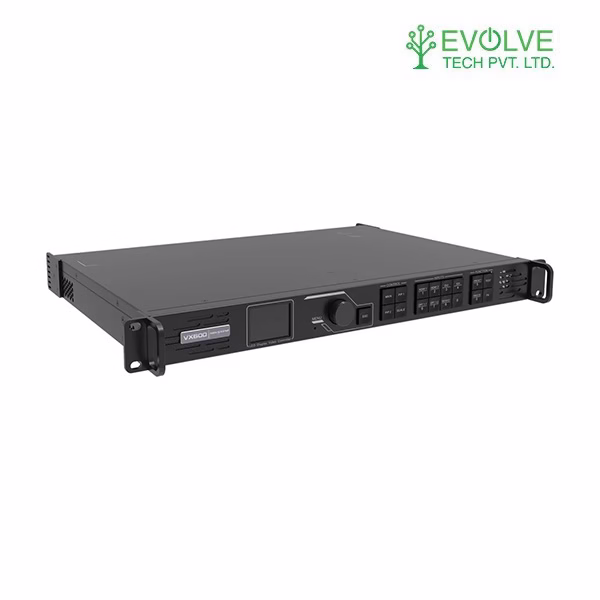

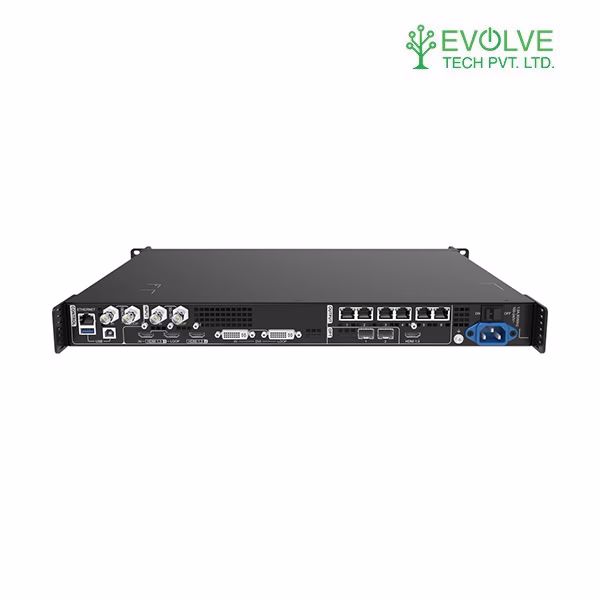

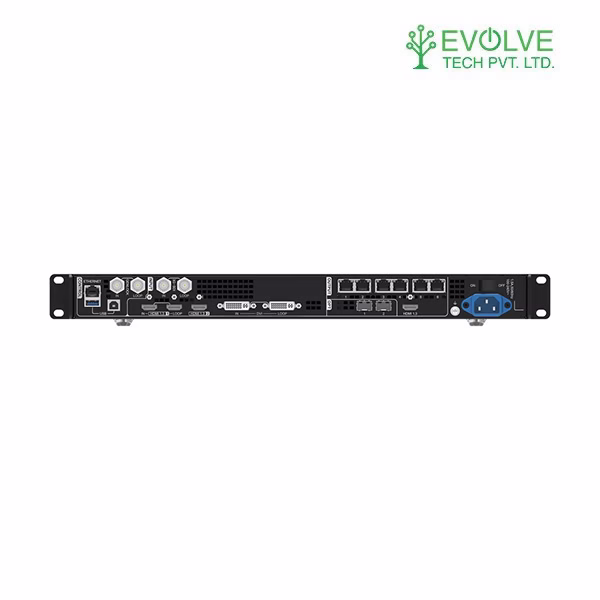

Novastar Dsp 600 pro

The Novastar DSP600 Pro All-in-One Controller is a powerful solution that integrates video processing and control into a single device, designed for professional LED display applications. Supporting up to 3.9 million pixels with a maximum output width of 10,240 pixels and height of 8,192 pixels, it is ideal for ultra-wide and fine-pitch screens. It features multiple input options, including HDMI 2.0, HDMI 1.3, 3G-SDI, USB, and optical fiber, with six Ethernet ports for flexible output. With 4K×2K@60Hz input, six-layer display, low latency, pixel-level calibration, and advanced scaling, the DSP600 Pro delivers exceptional image quality. Built with an industrial-grade design, it offers versatile control via front panel, NovaLCT, Unico web, or VICP app, making it perfect for stage, rental, and broadcast environments.
Pixel capacity3.9 million px
Max width / height10,240 × 8,192
Live inputsHDMI 2.0 · 2× HDMI 1.3 · 3G-SDI
PriceRs. 268,000 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Electrical Parameters 2
Power connector100-240V~, 50/60Hz
Rated power consumption41 W
Operating Environment 2
Temperature0°C to 50°C
Humidity5% RH to 85% RH, non-condensing
Storage Environment 2
Temperature–10°C to +60°C
Humidity5% RH to 95% RH, non-condensing
Physical Specifications 3
Dimensions482.6 mm × 302.2 mm × 50.1 mm
Net weight3.9 kg
Total weight6.5 kg
Packing Information 3
Carrying Case545 mm × 425 mm × 145 mm
Accessories1x Power cord, 1x Ethernet cable, 1x HDMI cable, 2x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval
Packing Box565 mm × 450 mm × 175 mm

DSP 600

Compare

Other pitches in Novastar

Novastar Dsp 600 proThis productNovastar Dsp 1000 proNovastar MRV532 Receiving CardNovastar 4k-prime pro
Pixel pitch————
Best viewed from————
Brightness————
EnvironmentProcessorProcessorProcessorProcessor
PriceRs. 268,000 per unitRs. 425,000 per unitRs. 5,900 per unitRs. 726,000 per unit
Questions buyers ask

Before you request a quote

Which processor does my LED wall need?
It depends on the panel resolution and the number of receiving cards. Tell us the wall size and pitch and we match the sending card or all-in-one processor.
Do you configure it?
Yes — every processor we sell is configured and tested with the wall before handover.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
