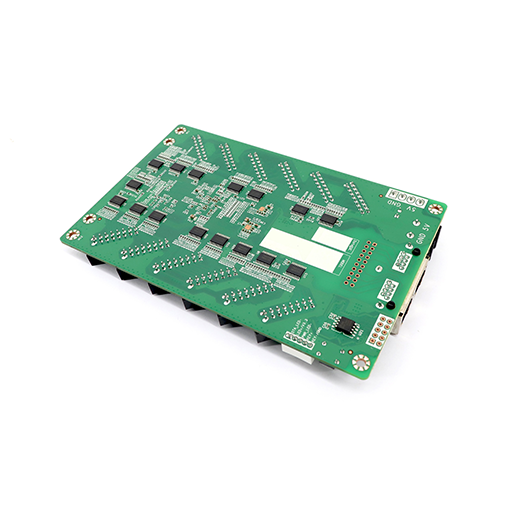

Novastar DH7512s Receiving Cards
₨ 4,030.00
The NovaStar DH7512-S is a versatile LED receiving card supporting up to 512×512 pixels, requiring NovaLCT v5.3.1 or above. It offers color management, 18-bit+, precise per-pixel brightness/chroma correction, RGB gamma adjustment, 3D, 90° rotation, mapping, and backup features via 12 HUB75E interfaces with 24-group RGB parallel data.
Description
Novastar DH7512s
| Category | Specification | Details |
| Novastar DH7512s Receiving Cards | ||
| Electrical Specifications | Input voltage | DC 3.3Vÿ5.5V |
| Rated current | 0.5A | |
| Rated power consumption | 2.5W | |
| working environment | temperature | -20ÿÿ+70ÿ |
| humidity | 10%RHÿ90%RH, no condensation | |
| Storage Environment | temperature | -25ÿÿ+125ÿ |
| humidity | 0%RHÿ95%RH, no condensation | |
| Physical specifications | size | 145.7mm×91.5mm×18.4mm |
| net weight | 93.1g Note: Single card weight | |
| Total weight | 12.9kg Note: When using the following packaging, the total weight of the product, printed matter, and packaging materials is | |
| Packaging Information | Packaging rules | Single card blister packaging, 100 receiving cards per box |
| Packing box size | 650.0mm×500.0mm×200.0mm |
