Novastar

Novastar Dsp 1000 pro

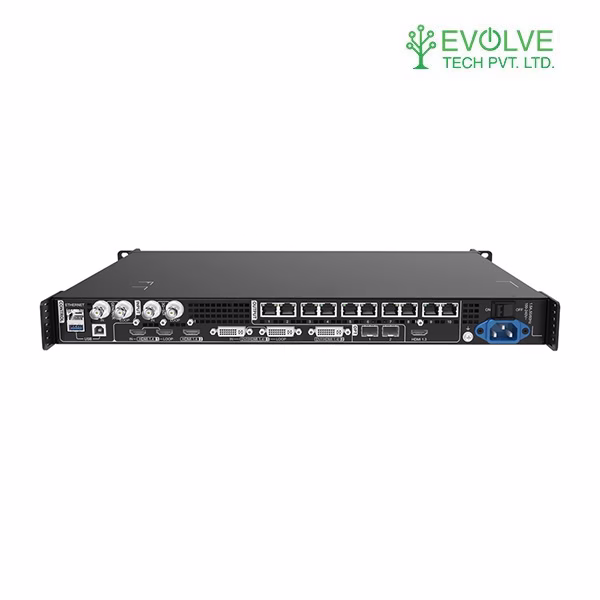

The DSP1000 Pro All-in-One Controller is a professional-grade solution that integrates advanced video processing and LED display control in one compact device. Featuring 10 Gigabit Ethernet ports, it supports up to 6.5 million pixels with a maximum output width of 10,240 pixels and height of 8,192 pixels, making it ideal for ultra-wide and high-resolution LED screens. It supports multiple inputs, including HDMI 2.0, HDMI 1.3, 3G-SDI, optical fiber, and USB playback. With 4K×2K@60Hz input, six-layer display, low latency, and pixel-level brightness/chroma calibration, it delivers exceptional image quality. The DSP1000 Pro offers versatile control options via front panel, NovaLCT, Unico web, and the VICP app. Built for stability with an industrial-grade design, it is perfect for rental, stage, broadcast, and fine-pitch LED applications.
Pixel capacity6.5 million px
Max width / height10,240 × 8,192
Live inputsHDMI 2.0 · HDMI 1.3 · 3G-SDI
PriceRs. 425,000 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Electrical Parameters 2
Power connector100-240V~, 50/60Hz
Rated power consumption43 W
Operating Environment 2
Temperature0°C to 50°C
Humidity5% RH to 85% RH, non-condensing
Storage Environment 2
Temperature–10°C to +60°C
Humidity5% RH to 95% RH, non-condensing
Physical Specifications 3
Dimensions482.6 mm × 302.2 mm × 50.1 mm
Net weight3.9 kg
Total weight6.5 kg
Packing Information 3
Carrying Case545 mm × 425 mm × 145 mm
Accessories1x Power cord, 1x Ethernet cable, 1x HDMI cable, 2x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval
Packing Box565 mm × 450 mm × 175 mm
Other 1
Noise Level (typical at 25°C/77°F)45 dB (A)

DSP 1000

Compare

Other pitches in Novastar

Novastar Dsp 1000 proThis productNovastar Dsp 600 proNovastar MRV532 Receiving CardNovastar 4k-prime pro
Pixel pitch————
Best viewed from————
Brightness————
EnvironmentProcessorProcessorProcessorProcessor
PriceRs. 425,000 per unitRs. 268,000 per unitRs. 5,900 per unitRs. 726,000 per unit
Questions buyers ask

Before you request a quote

Which processor does my LED wall need?
It depends on the panel resolution and the number of receiving cards. Tell us the wall size and pitch and we match the sending card or all-in-one processor.
Do you configure it?
Yes — every processor we sell is configured and tested with the wall before handover.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
