Novastar VX400 Video Processor

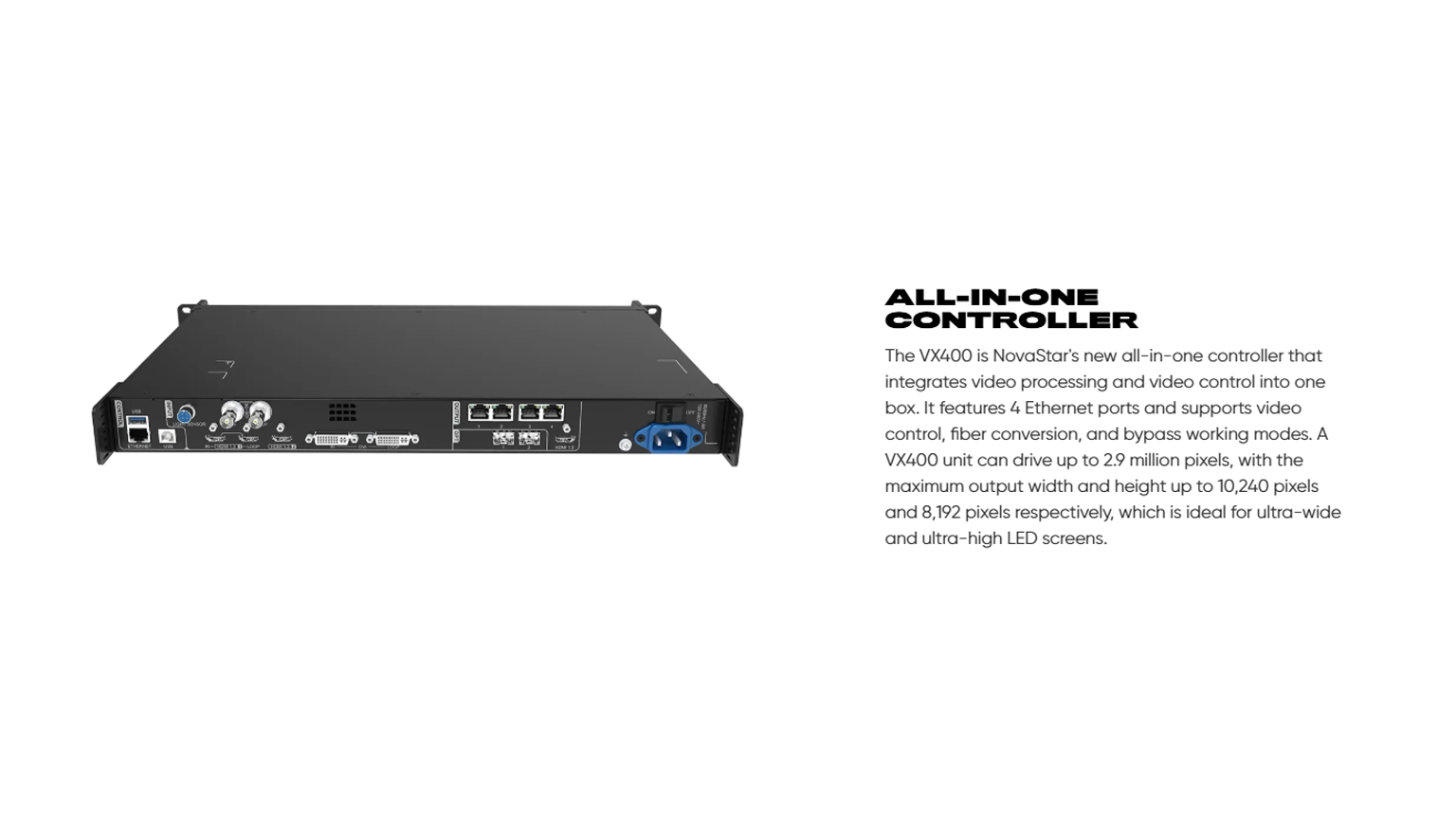

The NovaStar VX400 is an all-in-one LED video controller and processor, ideal for stage, rental, and fine-pitch displays. It supports up to 2.6 million pixels with resolutions as high as 10,240 × 8,192 px. Inputs include HDMI, DVI, SDI, and fiber, with outputs via 4× Gigabit Ethernet and dual OPT ports. Features include low latency, scaling, PIP, presets, calibration, and auto brightness. Control is possible through front panel, USB, Ethernet, NovaLCT, and V-Can software, ensuring reliable performance.
Pixel capacity2.6 million px
Max width / height10,240 × 8,192
Live inputs2× HDMI 1.3 · DVI · 3G-SDI
PriceRs. 240,500 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Electrical Parameters 2
Power connector100–240V~, 1.6A, 50/60Hz
Rated power consumption28 W
Operating Environment 2
Temperature0°C to 45°C
Humidity20% RH to 90% RH, non-condensing
Storage Environment 2
Temperature–20°C to +70°C
Humidity10% RH to 95% RH, non-condensing
Physical Specifications 2
Dimensions483.6 mm × 301.2 mm × 50.1 mm
Net weight4 kg
Packing Information 3
Accessories1x Power cord 1x HDMI to DVI cable 1x USB cable 1x Ethernet cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual
Packing size550.0 mm × 175.0 mm × 400.0 mm
Gross weight6.8 kg

VX400

Compare

Other pitches in Novastar

Novastar VX400 Video ProcessorThis productNovastar Dsp 1000 proNovastar Dsp 600 proNovastar MRV532 Receiving Card
Pixel pitch————
Best viewed from————
Brightness————
EnvironmentProcessorProcessorProcessorProcessor
PriceRs. 240,500 per unitRs. 425,000 per unitRs. 268,000 per unitRs. 5,900 per unit
Questions buyers ask

Before you request a quote

Which processor does my LED wall need?
It depends on the panel resolution and the number of receiving cards. Tell us the wall size and pitch and we match the sending card or all-in-one processor.
Do you configure it?
Yes — every processor we sell is configured and tested with the wall before handover.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
