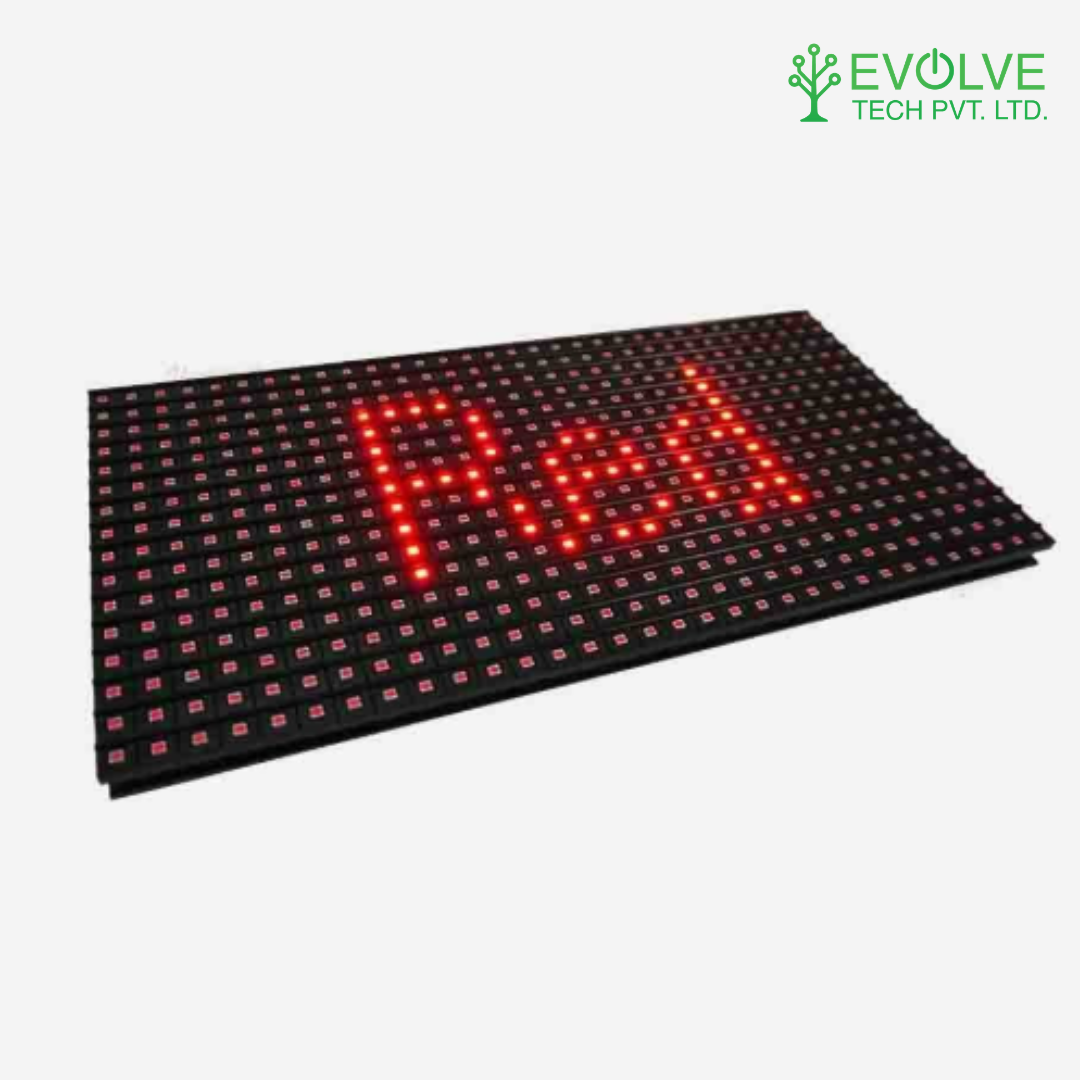

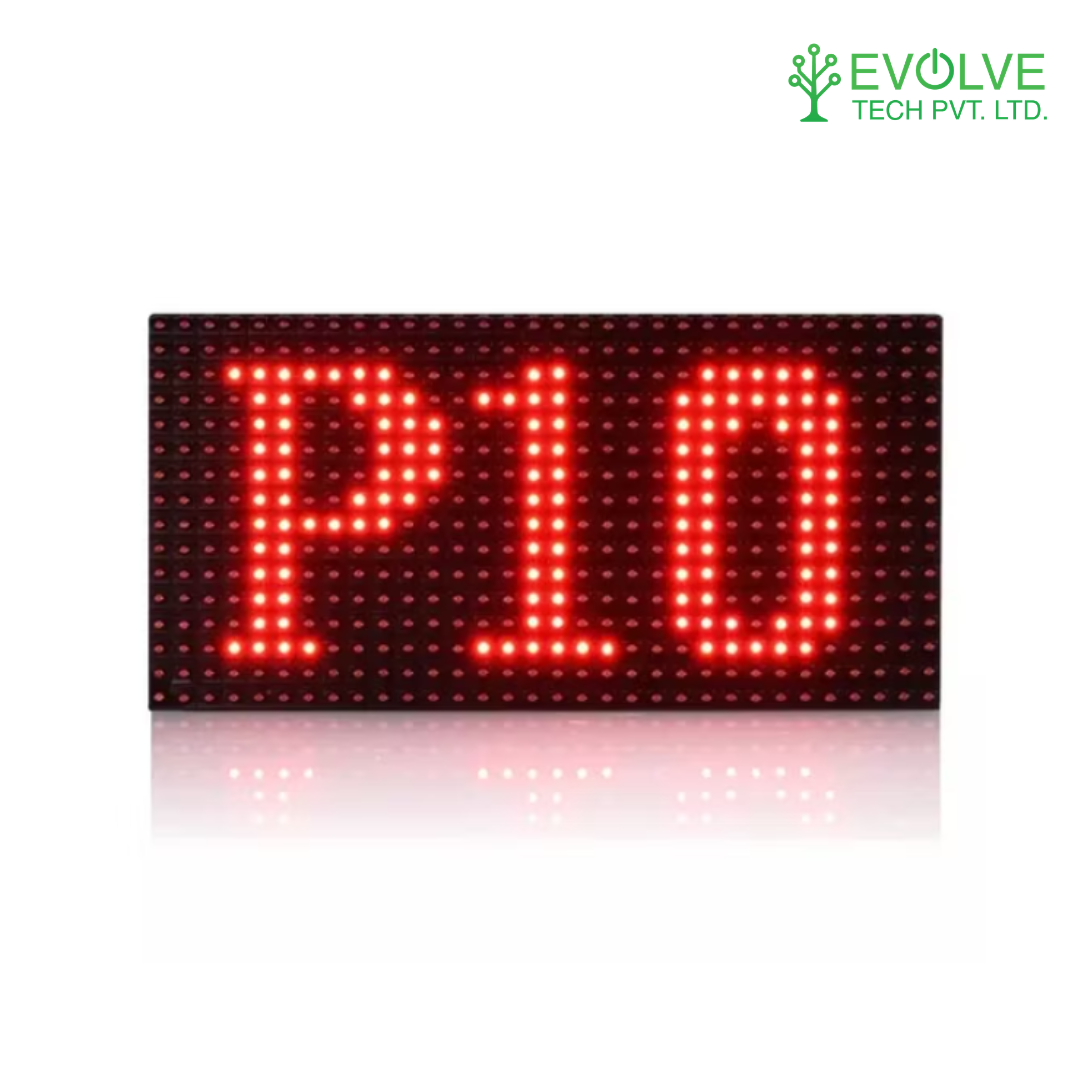

P10 SINGLE RED COLOR LED MODULE
₨ 5,290.00
The P10 Single Red Color LED Module (320mm x 160mm) is designed for clear and high-visibility outdoor and semi-outdoor display applications. With a 10mm pixel pitch, it delivers sharp text and simple graphics even from long viewing distances. The bright red LEDs ensure excellent readability for advertising boards, scrolling messages, and information displays. Its standard 320mm x 160mm size allows easy installation and seamless panel connection. This module is energy-efficient, durable, and ideal for continuous operation in various commercial environments.
Description
P10 Single Color
| Parameter | Value |
| Model | P10-Outdoor Single-32X16 |
| Resolution | 32(W) * 16(H) |
| Pitch | 10 mm |
| LED Arrangement | DIP 346 |
| Module Size | 320mm×160mm |
| Driver Mode | Constant driving 1/4 scanning |
| Pixel color | Red/ Green/ Blue/Yellow/White |
| Electricity Parameter | |
| Brightness | 6500 – 6800 nits |
| View Angle | 90-120(horizontal); 30-60(vertical) |
| View Distance | 10 m -25m |
| Gray Scale | 12ts input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 100 levels |
| Density (Real) (dots/m^2) | 10,000 |
| Control mode | Asynchronous or Synchronous |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 15 W |
| Control System | |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60Hz |
| Screen Refresh Frequency | ≥1920HZ |
| Gamma Correction | -5.0~5.0 |
| Reliability | |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Out of Control Pixel Rate | 0.01% |
| Protection | Semi-outdoor |
