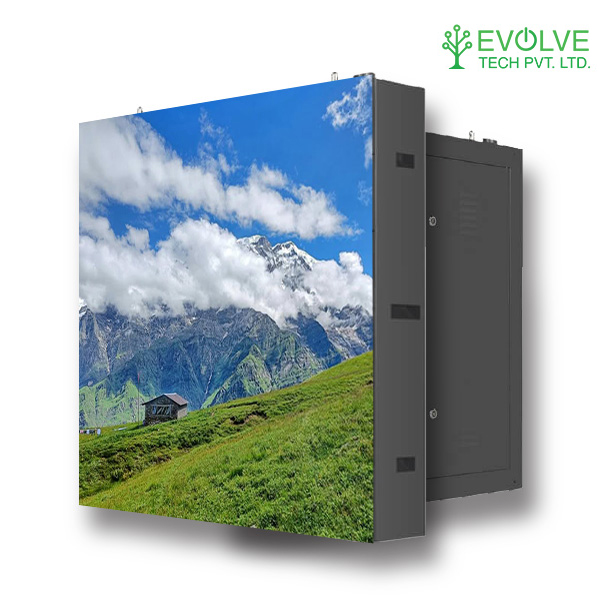

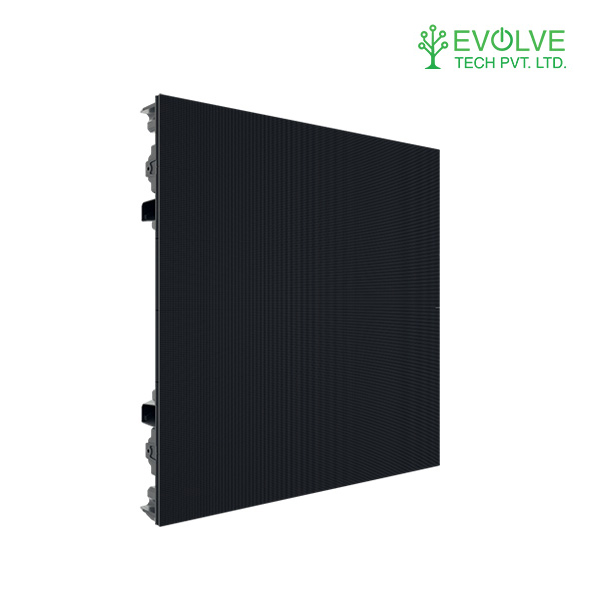

Lampro LDT4 (P4) Outdoor LED Display

The Lampro LDT4 is a durable 960×960mm outdoor LED display with 4mm pixel pitch, 5000–5500 cd/m² brightness, 3840Hz refresh rate, and IP65 waterproof protection. Ideal for fixed digital signage, it supports 2K/4K video, rear maintenance, and offers long-lasting, high-contrast performance for impactful outdoor advertising displays.
Pixel pitch4 mm
Best viewed from4 m+
BrightnessSupport
Other pitches finer pitch = sharper up close
Size your wall Module 320 × 160 mm
Nearest build · Resolution
PriceRs. 14,904 per module · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu

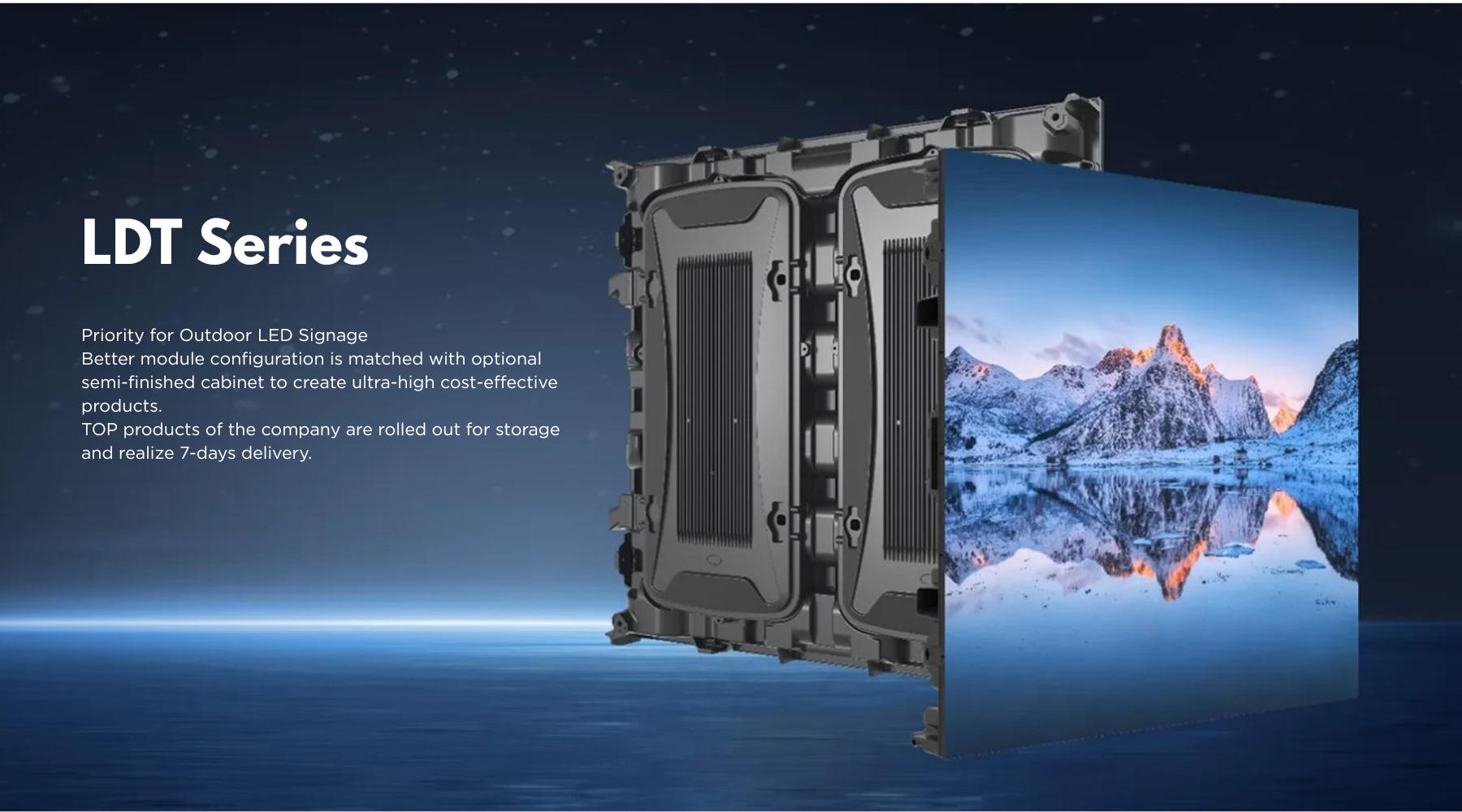

LAMPRO LDT Series
Part of the LAMPRO LDT Series

Priority for Outdoor LED Signage

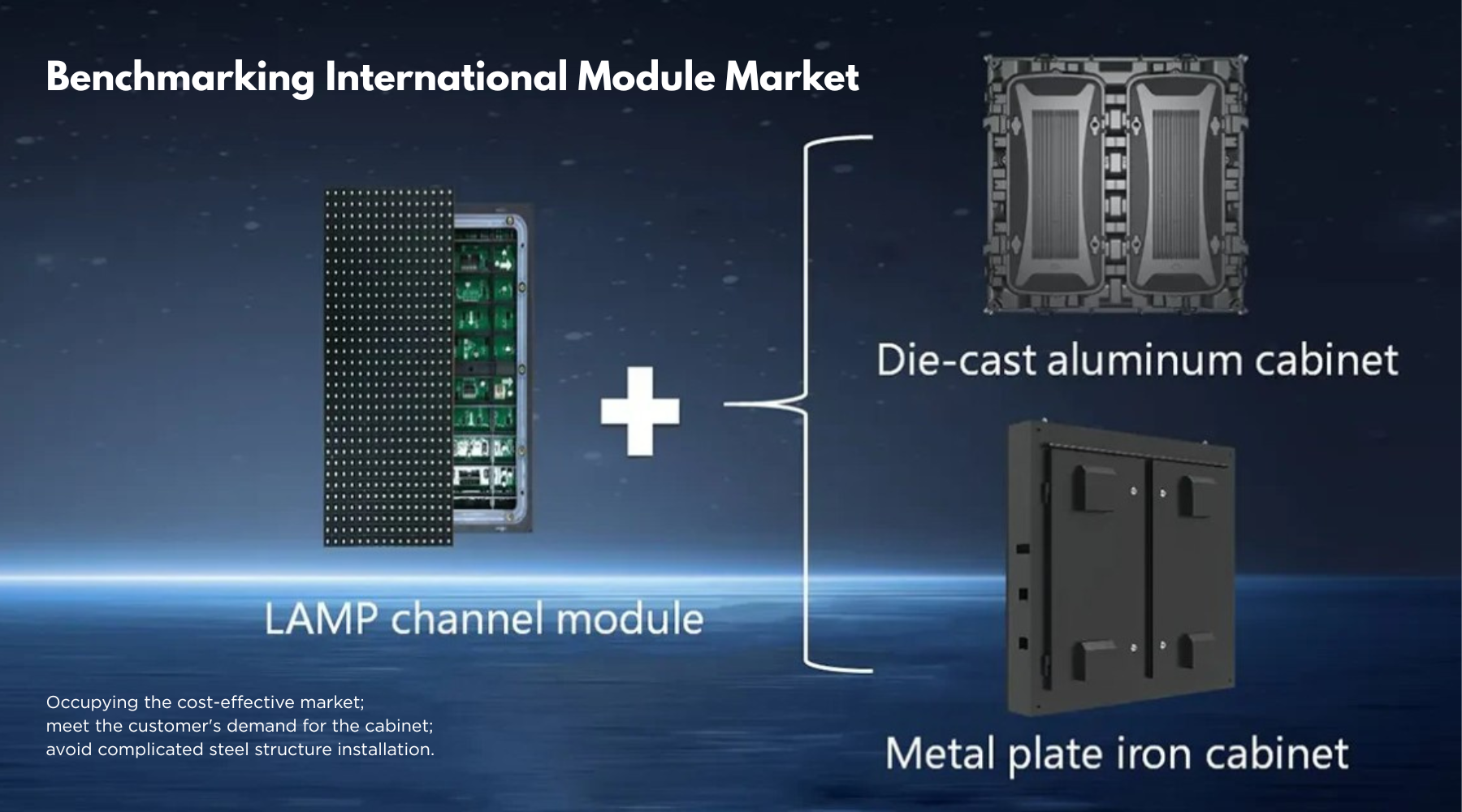

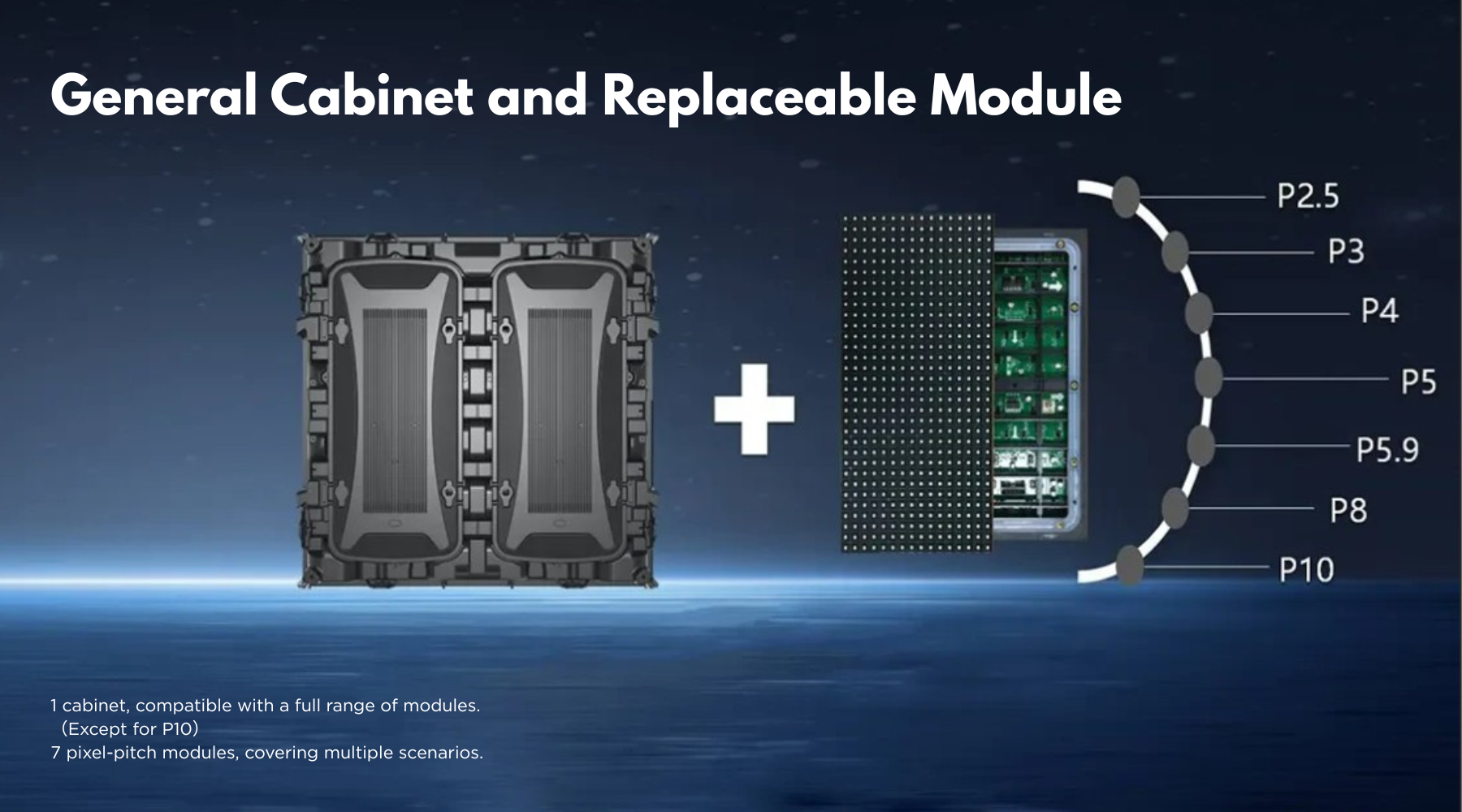

Better module configuration is matched with optional semi-finished cabinet to create ultra-high cost-effective products TOP products of the company are rolled out for storage and realize 7-day delivery

Official datasheet: LDT 4 960 14 models in the series 15 sizes in our shop
Specifications

Spec sheet

Datasheet (PDF)
Pixel pitchP4
BrightnessSupport
Refresh rate1920/3840Hz
Module size320 × 160 mm
Max power879 W/m2
LED lifespan100000hrs
Display 14
Pixel Pitch4mm
LED TypeSMD1921
Module Resolution(W×H)80x40 pixels
Pixel density(pixels/sq.m.)62500 dot/㎡
Single-dot Brightness CalibrationSupport
Brightness5000~5500 cd/m2
Color Temperature2000K~9300K Adjustable
Beam Angle(Hor/Ver°)140°/140°
Brightness/Color Uniformity≥98%
Contrast Ratio5000:1
Frame Changing Frequency60Hz
Refresh Rate1920/3840Hz
Processing Depth12~14Bit
Video Support2K、4K
Electrical 3
Input Power879 W/m2
Input Power264 W/m2
Power Supply Input VoltageAC90~132V/ AC186~264V,47-63(Hz)
Mechanical 5
Module Size (WxH)W320mmxH160mm
Cabinet Size (WxHxD)960mmx960mmx191mm
Cabinet Weight (kg/panel)40 kg

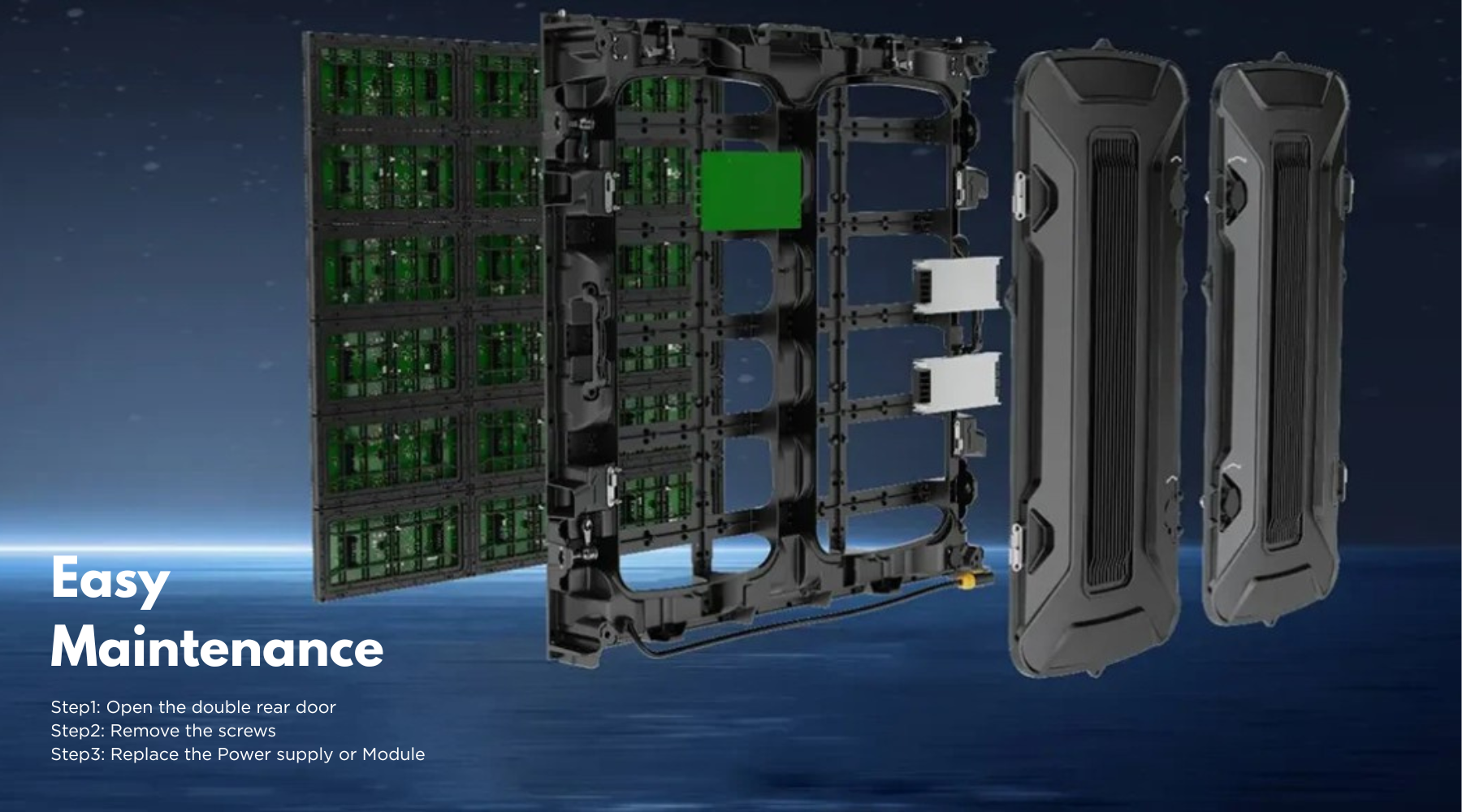

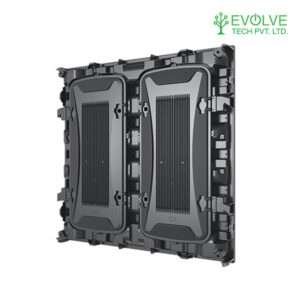

MaintenanceRear
Cabinet MaterialSheet metal iron
Environment 4

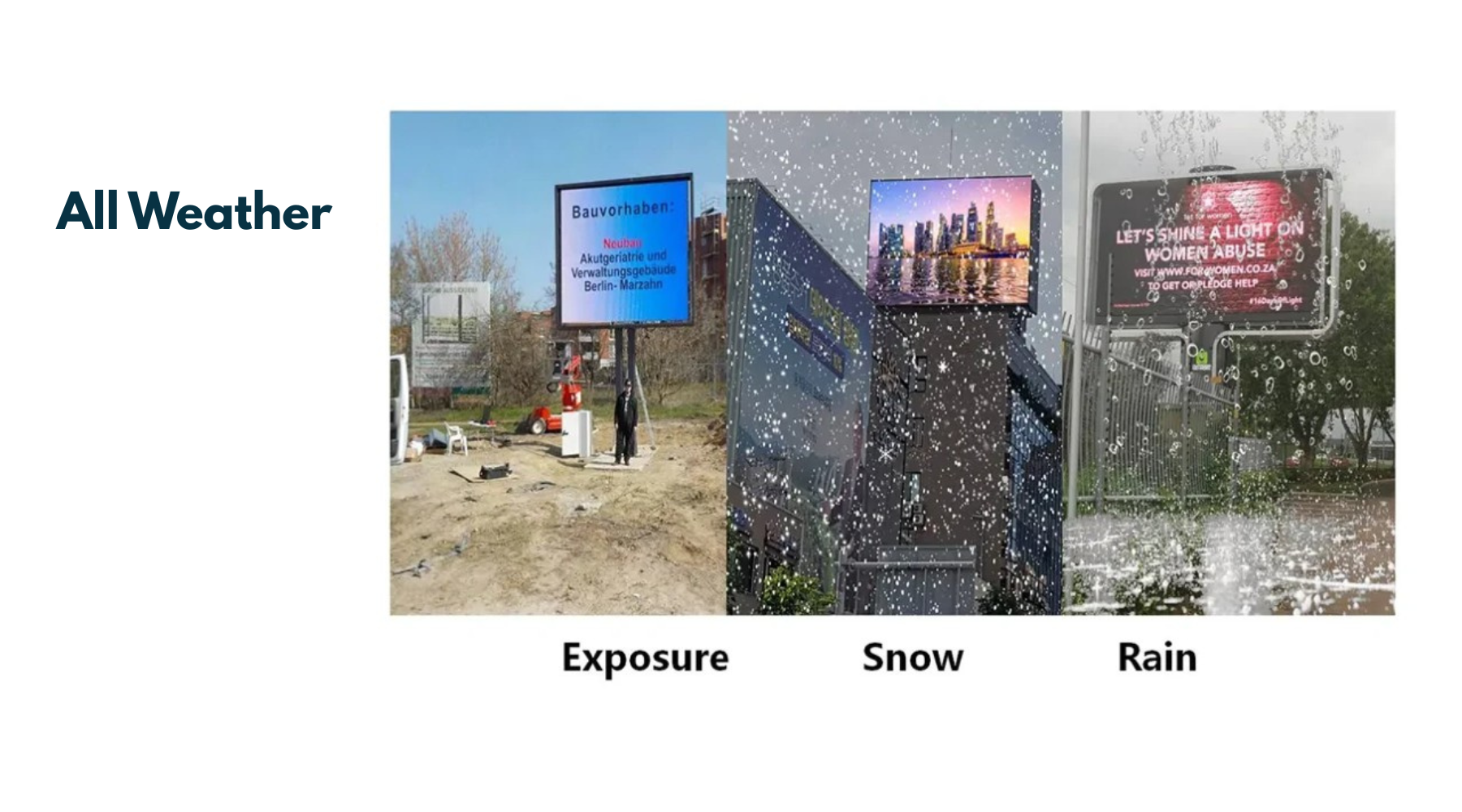

Ingress ProtectionIP65(Front), IP54(Rear)
Life Span(hrs)100000hrs
Working Temp/Humidity(℃/RH)-20℃~+50℃ / 10%~80%RH (No Condensation)
Storage Temp/Humidity(℃/RH)-20℃~+55℃ / 10%~85%RH (No Condensation)
Other 2
Planeness≤0.5mm
Driver ModeConstant Current Drive/10 Scan

LDT 4

Compare

Other pitches in LED Outdoor

Lampro LDT4 (P4) Outdoor LED DisplayThis productP4 Outdoor Customized SeriesLampro LC4 (P4) Outdoor LED DisplayLampro LDT5 (P5) Outdoor LED Display
Pixel pitch4 mm4 mm4 mm5 mm
Best viewed from4 m+4 m+4 m+5 m+
BrightnessSupport—SupportSupport
EnvironmentOutdoorOutdoorOutdoorOutdoor
PriceRs. 14,904 per moduleRs. 14,800 per moduleRs. 13,596 per moduleRs. 13,110 per module
Questions buyers ask

Before you request a quote

Which pixel pitch do I need?
Divide the closest viewing distance in metres by about 1.2: 2 m away → P1.9, 3 m → P2.5, 4–6 m → P3–P4, roadside → P6–P10. Use the pitch finder on the home page or send us the room and we will shortlist.
Is the price per module, per cabinet or per m²?
Each product page states the unit next to the price. The wall calculator converts it into a supply estimate for your wall size; delivery, structure, processor and installation are itemised separately in the quote.
What content can the screen show?
Anything from a laptop, media player, CCTV or TV box — video, presentations, menus and live feeds — through the video processor supplied with the wall.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
