Outdoor

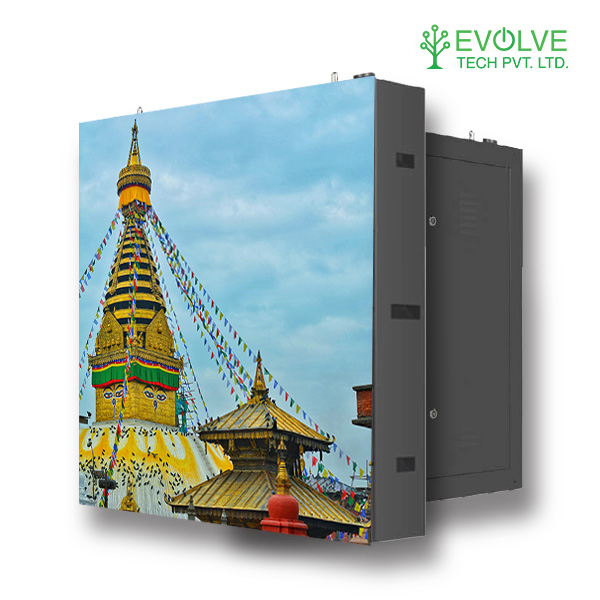

Lampro LDT6 (P6) Outdoor LED Display

The Lampro LDT6 outdoor LED display board features a lightweight die-cast magnesium body—40% lighter, 30% thinner than traditional models. With an IP65 waterproof rating, ≥5000nit high brightness, 5000:1 contrast, 3840Hz refresh rate, and rear maintenance, it’s ideal for durable  outdoor advertising displays in all conditions.
Pixel pitch6 mm
Best viewed from6 m+
BrightnessSupport
Other pitches finer pitch = sharper up close
Size your wall Module 320 × 160 mm
Nearest build · Resolution
PriceRs. 12,834 per module · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
LAMPRO LDT Series
Part of the LAMPRO LDT Series

Priority for Outdoor LED Signage

Better module configuration is matched with optional semi-finished cabinet to create ultra-high cost-effective products TOP products of the company are rolled out for storage and realize 7-day delivery

14 models in the series 15 sizes in our shop
See it installed

LDT Series in real venues

Outdoor boards and billboards, built for sun and monsoon. 5 installation videos from our YouTube channel.

Open playlist on YouTube
Play 5 videosLDT Series playlist
Specifications

Spec sheet

Datasheet (PDF)
Pixel pitchP6
BrightnessSupport
Refresh rate3840Hz
Module size320 × 160 mm
Max power776 W/㎡
LED lifespan100000hrs
Display 14
Pixel Pitch5.926mm
LED TypeSMD2727
Module Resolution(W×H)54X27=1458 Pixels
Pixel density(pixels/sq.m.)28476 dot/㎡
Single-dot Brightness CalibrationSupport
Brightness5000~5500 cd/㎡
Color Temperature2000K~9300K Adjustable
Beam Angle(Hor/Ver°)160°/140°
Brightness/Color Uniformity≥98%
Contrast Ratio5000:1
Frame Changing Frequency60Hz
Refresh Rate3840Hz
Processing Depth12~14Bit
Video Support2K、4K
Electrical 3
Input Power776 W/㎡
Input Power233 W/㎡
Power Supply Input VoltageAC90~132V/ AC186~264V,47-63(Hz)
Mechanical 5
Module Size (WxH)W320mmxH160mm
Cabinet Size (WxHxD)960mmx960mmx133mm(With Back Cover)
Cabinet Weight (kg/panel)26.5 kg
MaintenanceRear
Cabinet MaterialDie-cast Magnesium
Environment 4
Ingress ProtectionIP65(Front), IP54(Rear)
Life Span(hrs)100000hrs
Working Temp/Humidity(℃/RH)-20℃~50℃ / 10%~80%RH (No Condensation)
Storage Temp/Humidity(℃/RH)-20℃~55℃ / 10%~85%RH (No Condensation)
Compliance 1
CertificationCE/CB/ROHS/EAC
Other 1
Planeness≤0.5mm

LDT 6

Compare

Other pitches in LED Outdoor

Lampro LDT6 (P6) Outdoor LED DisplayThis productP4 Outdoor Customized SeriesLampro LDT4 (P4) Outdoor LED DisplayLampro LC4 (P4) Outdoor LED Display
Pixel pitch6 mm4 mm4 mm4 mm
Best viewed from6 m+4 m+4 m+4 m+
BrightnessSupport—SupportSupport
EnvironmentOutdoorOutdoorOutdoorOutdoor
PriceRs. 12,834 per moduleRs. 14,800 per moduleRs. 14,904 per moduleRs. 13,596 per module
Questions buyers ask

Before you request a quote

Which pixel pitch do I need?
Divide the closest viewing distance in metres by about 1.2: 2 m away → P1.9, 3 m → P2.5, 4–6 m → P3–P4, roadside → P6–P10. Use the pitch finder on the home page or send us the room and we will shortlist.
Is the price per module, per cabinet or per m²?
Each product page states the unit next to the price. The wall calculator converts it into a supply estimate for your wall size; delivery, structure, processor and installation are itemised separately in the quote.
What content can the screen show?
Anything from a laptop, media player, CCTV or TV box — video, presentations, menus and live feeds — through the video processor supplied with the wall.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
