LRM Series 2.6 Indoor
₨ 20,400.00

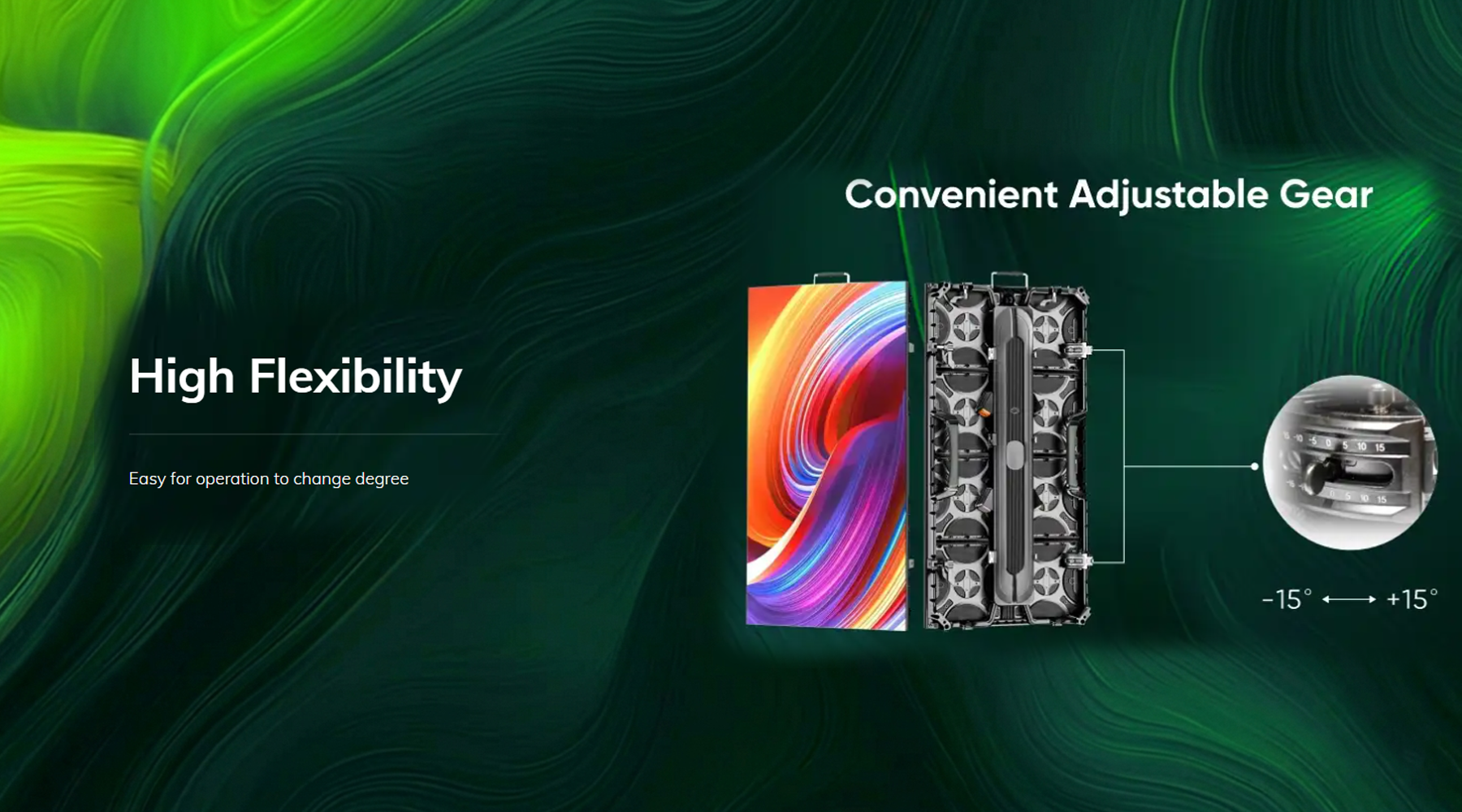

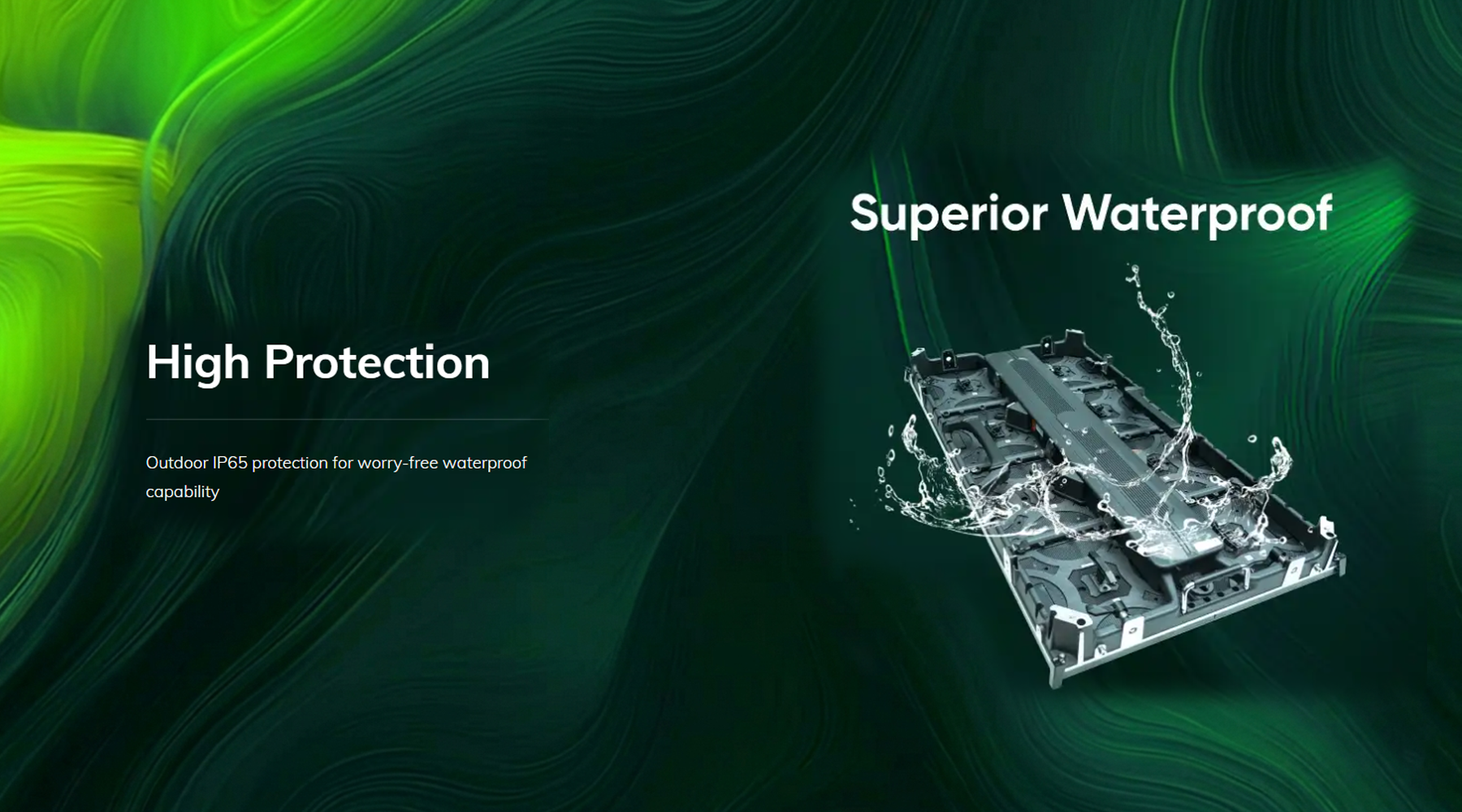

The LAMPRO LRM Series is a versatile and cost-effective LED display solution specifically designed for high-performance rental and staging applications. It features a flexible design that supports multiple splicing options, including straight, curved (adjustable from -15° to +15°), and 90-degree corner configurations. Built for durability and ease of use, the panels are lightweight for efficient transport and offer IP65-rated protection for reliable outdoor performance. The series provides excellent visual clarity with pixel pitches ranging from 2.6mm to 4.8mm and high brightness levels reaching up to 4000 nits. Additionally, its advanced heat dissipation design ensures a longer lifespan and stable operation during live shows and commercial events.
Description
LRM Series 2.6
| Parameter | Value |
| Pixel Pitch | 2.6mm |
| LED Type | 3-in-1 SMD |
| Brightness | 700cd/m² |
| Panel Size | 500 x 500 / 1,000 x 86mm |
| Panel Weight | 7.5 / 13.5kg/panel |
| Module Size | 250 x 250mm |
| Pixel Density | 147,456 pixels/m² |
| Pixels Per Panel | 192 x 192 / 384 pixels |
| Maintenance | Rear (LED modules front service, cabinet rear service) |
| Ingress Protection | Front IP40 / Rear IP20 |
| Curve | Convex 15°, Concave 15° |
| Planeness | ≤0.2mm |
| Environment | Indoor |
| Material | Die-cast Aluminum |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Contrast Ratio | 5,000:1 |
| Input Power | 400±10%W/m² |
| Input Power | 150±10%W/m² |
| Input Voltage | 220±10% VAC |
| Processing Depth | 14bit |
| Video Frame Rate | 50&60Hz |
| Refresh Rate | ≥3,840Hz |
| LED Life Time | 100,000 Hours |
| Operating Temperature/Humidity | -10°C~+45°C / 10~70%RH |
| Storage Temperature/Humidity | -20°C~+55°C / 10~70%RH |
| Standard Mounting Configuration | Hanging/Stacking |
| Max Stacking | 12pcs (500500mm); 6pcs (5001000mm) |
| Max Hanging | 20pcs (500500mm); 10pcs (5001000mm) |
