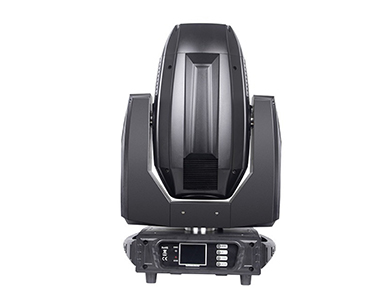

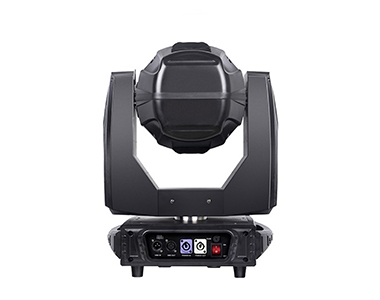

Outdoor 420w BSW moving head light
₨ 148,800.00
This professional 421W OSRAM moving head beam light is built for demanding outdoor stage productions, concerts, live events, and architectural lighting applications. With an IP66 waterproof design, ultra-sharp beam output, advanced prism effects, and precise electronic focusing, it delivers outstanding performance in any environment. Powered by high-speed three-phase motors and intelligent cooling technology, it ensures stable operation, accurate positioning, and long service life. Featuring DMX512, RDM control, dual-channel operation, and premium optical components, this fixture is an ideal choice for professional lighting installations.
Description
Outdoor 420w BSW moving head light
| Specification | Details |
| Input Voltage | AC 90V–235V, 50/60Hz |
| Power Supply | 650W |
| Light Source | OSRAM 421W |
| Color Temperature | 7900±500K |
| Color System | 14 Colors + Atomization Function |
| Gobo System | 17 Fixed Gobos + Open |
| Focus | Electronic Focus |
| Frost | Atomization / Soft Light Effect |
| Strobe | Dual Motor Independent Strobe, 0.5–20 times/sec |
| Motor | High-precision Three-phase Motor |
| Dimming | 0–100% Linear Dimming, Flicker-free |
| Beam Angle | 2°–5° |
| Channel Mode | 16CH / 20CH |
| Lens Diameter | 165mm |
| Waterproof Rating | IP66 |
| Control Modes | DMX512 / Master-Slave / Auto-run / RDM |
| Prism System | 8 Prism / 8+16 Prism Overlay |
| Display | LCD Display, 180° Rotatable |
| Pan | 540°, 8/16 Bit Resolution |
| Tilt | 270°, 8/16 Bit Resolution |
| Positioning | Automatic Position Correction |
| Cooling System | Intelligent Low-noise Air Convection Cooling |
| Housing Material | Cast Aluminum + Outdoor Engineering Plastic |
| Installation | Upright / Hanging |
| Fixture Size | 43 × 26 × 63 cm |
| Net Weight | 26 KG |
| Gross Weight | 30 KG |
