DSPPA

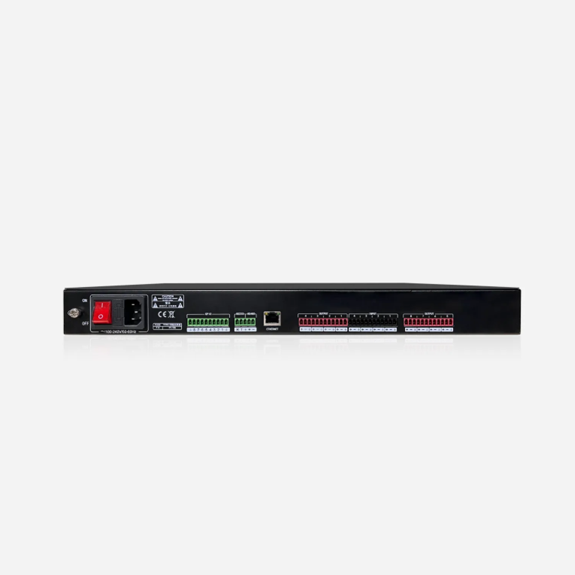

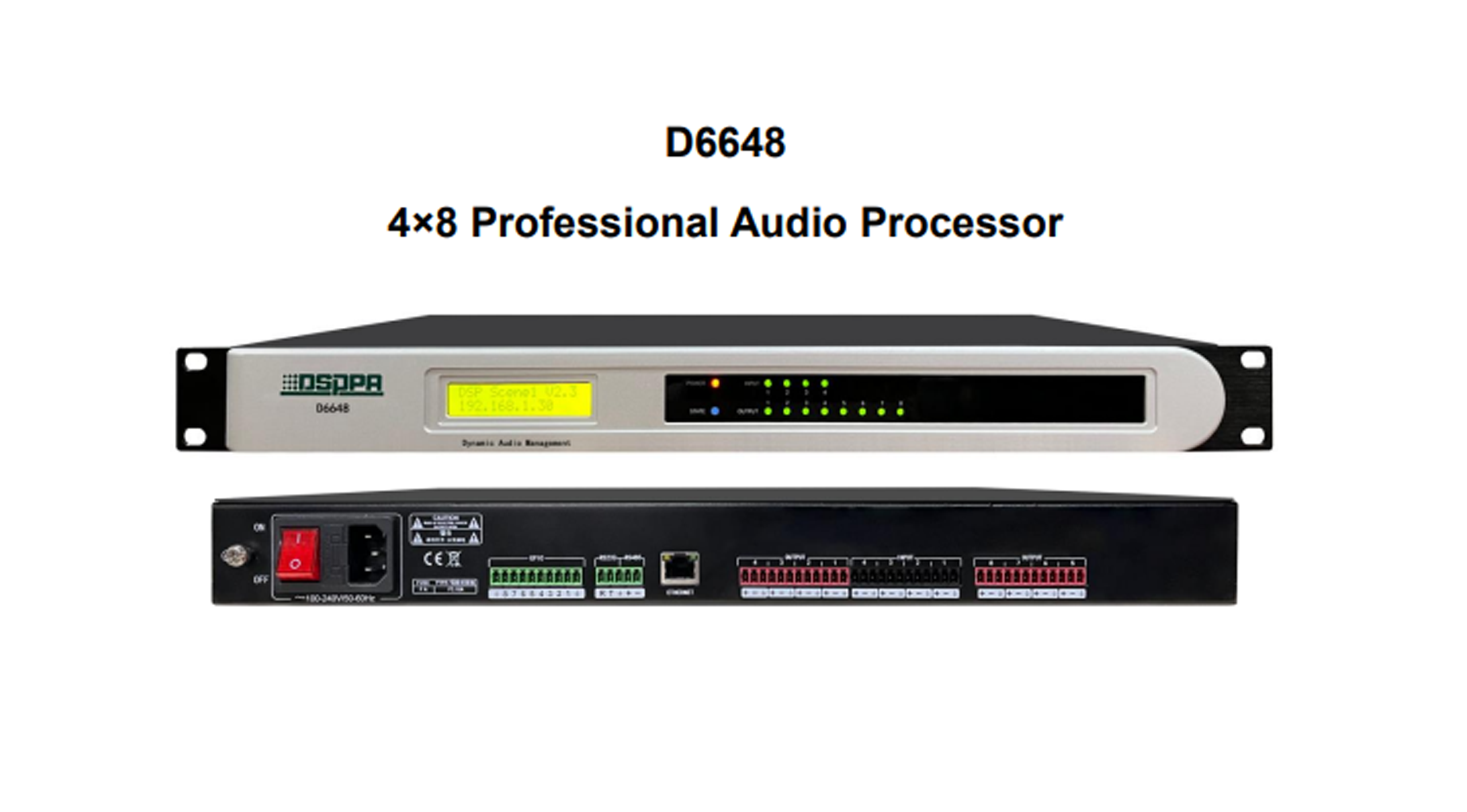

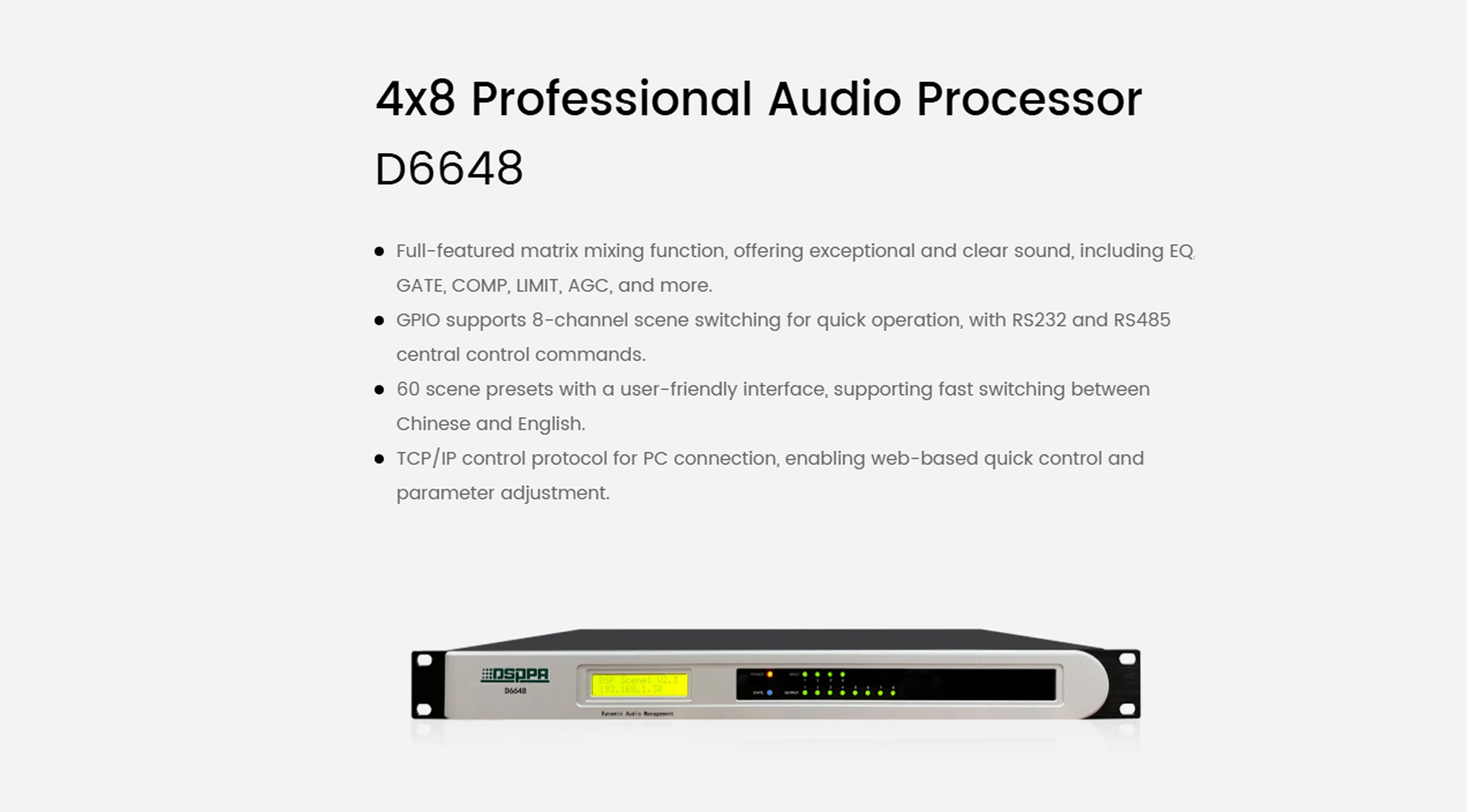

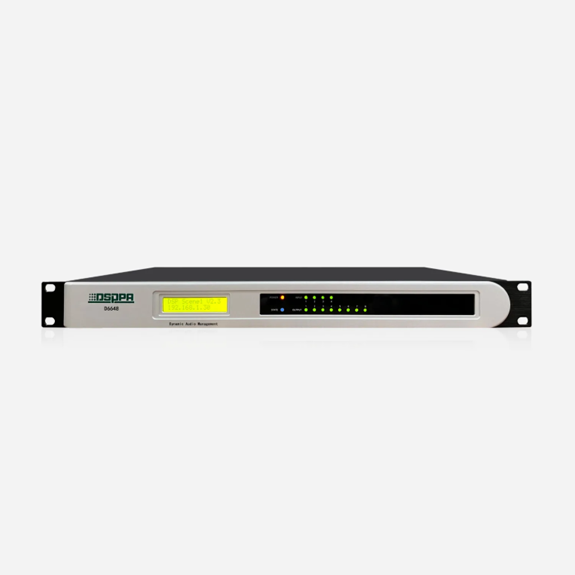

D6648 4×8 Professional Audio Processor

Name: D6648 4x8 Professional Audio Processor - Evolve Tech - LED Display In Nepal
SKU: ET-2365
Price: 133500.00 NPR
Availability: InStock

The line array sound field processor is a product that adjusts the main beam radiation direction of the line array sound field through electronic technology and digital processing technology (DSP).It can change the direction of the main beam of the line array sound field under the condition of fixed vertical installation of the line array sound system, and overcome the disadvantages of the line array sound system that is difficult to adjust freely.The D6684 has an excellent adjustable line array directivity function, which can be adjusted in four directions at the same time, so that listeners in the direction of the area can get an excellent listening experience.The D6684 line array sound field processor can flexibly adjust the directivity (vertical radiation angle) of the connected line array speaker by using the web operation page, and the built-in digital equalizer of the line array sound field processor can effectively improve the sound quality.

PriceRs. 133,500 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp

Official warranty Installed by our engineers Spares in Kathmandu

Specifications

Spec sheet

Datasheet (PDF)

Display 1

Bit Depth24-bit

Electrical 6

Input / Output4 × 8

Input / Output TypeAnalog

Sampling Frequency48 kHz

Input Impedance< 10 kΩ

Maximum Input Level+18 dBu

Frequency Response20 Hz–20 kHz ±0.3 dB

Mechanical 2

Dimensions (L×W×H)482 × 253 × 44 mm

Net / Gross Weight3.3 kg / 3.8 kg

Compliance 1

Output Impedance200 Ω

Other 15

ModelD6648

Signal Processor40-bit Floating-Point DSP, 400 MHz

A/D Dynamic Range118 dB

D/A Dynamic Range118 dB

Maximum Output Level+18 dBu

Transmission Delay4.1 ms

Output Channel Delay0–1500 ms (Step: 0.02 ms)

THD+N≤ 0.005% (+4 dBu, 1 kHz)

CMRR≥ 55 dB

Crosstalk≤ -100 dB

Signal-to-Noise Ratio (SNR)≥ 111 dB (20 Hz–20 kHz)

Dynamic Range≥ 111 dB (20 Hz–20 kHz)

Noise Floor≤ -93 dBu (20 Hz–20 kHz)

Connection TypeTCP/IP, RS232, RS485

Preset Memory60 Presets

D6648 4x8 Professional Audio Processor
