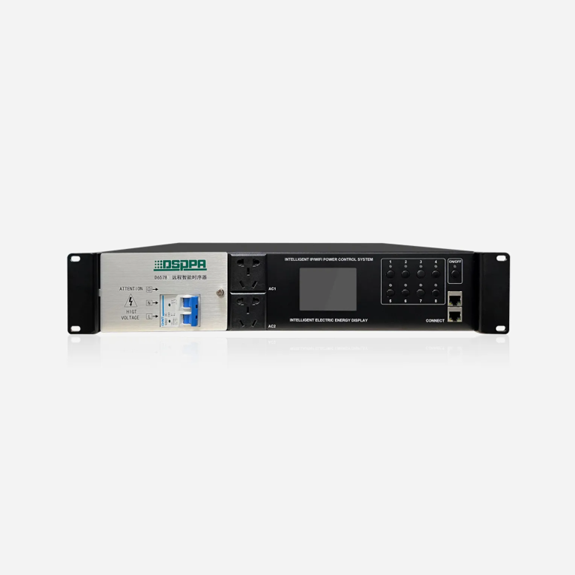

D6578 8 Channel Power Sequence Controller

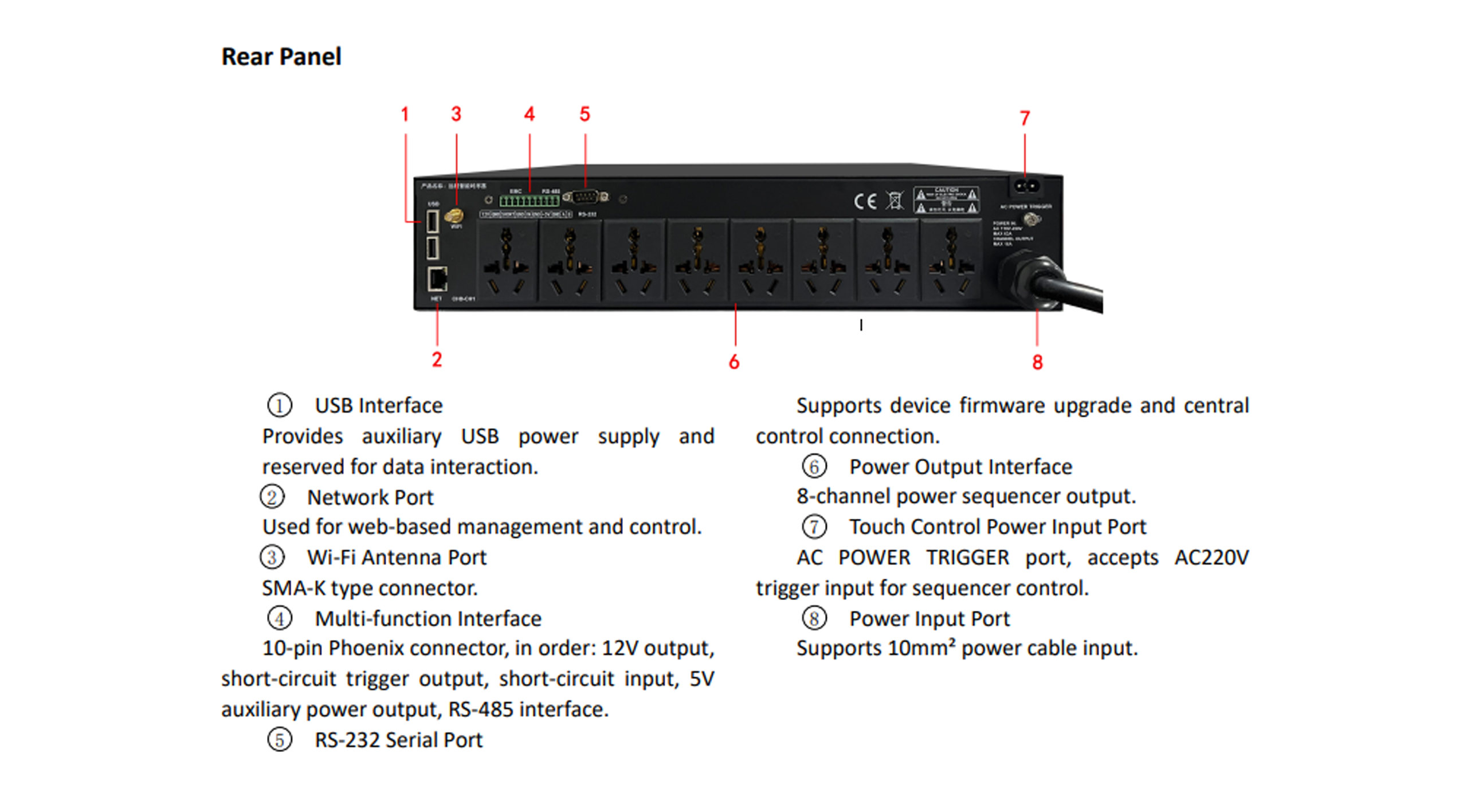

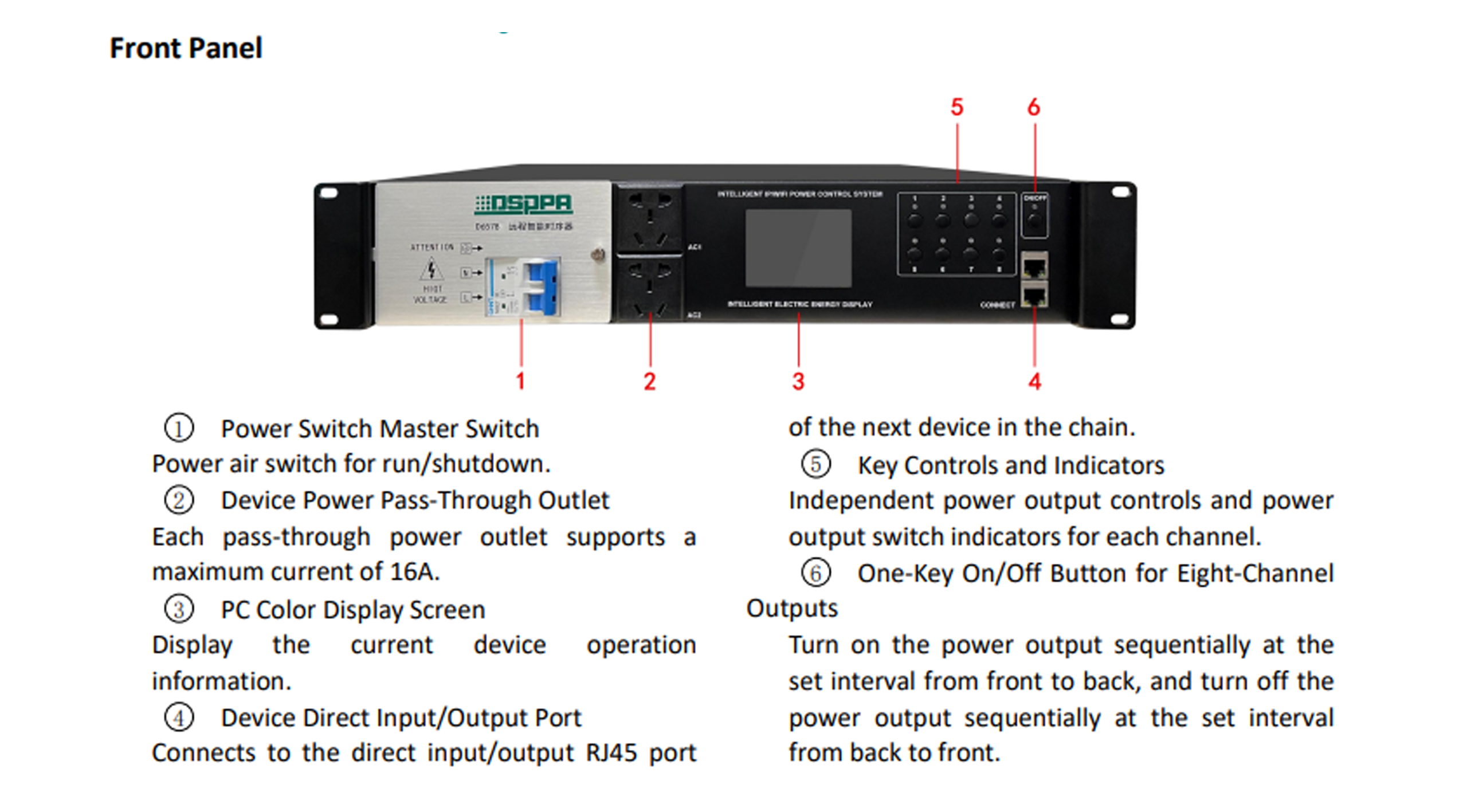

The multi-channel intelligent power manager ensures stable performance and supports centralized control via IP network or RS-232 connection with a central control system. It also integrates RS-485 networking functionality, allowing up to 254 units to be connected through a hand-in-hand connection using RJ45 input and output ports. Additionally, an alternative RS-485 connection is available via Phoenix terminals on the rear panel. Once connected, the system supports sequential startup/shutdown of 8*N power outlets from front to back.The device also features a built-in Wi-Fi AP mode, allowing users to log in for web-based management via various Wi-Fi terminals or a wired IP connection. Furthermore, it includes one RS-232 serial port, one DC12V trigger output, one short-circuit output, one short-circuit input, one AC220V trigger input, and two standard panel-mounted AC pass-through power outlets.
