DSPPA

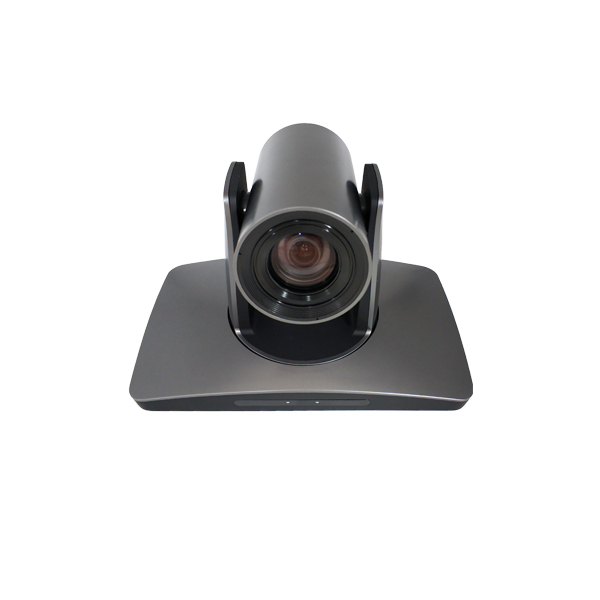

D6284 Video Conference Camera

This product is a high-definition IP conference camera with 1/2.8-inch 2.14-megapixel HD CMOS sensor. With excellent features and advanced process technology and algorithm, the conference camera restores the image color authentically, which providing professional and high-definition image effects for conference system. With H.265/H.264 network video encoding, it offers a smooth and clear image in low bandwidth. It can be mounted on desktops, walls and ceilings.
PriceRs. 186,500 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Display 5
HDMI Video Resolution1080P60/P50/P30/P25, 720P60/P50
USB Video FormatsH.264, H.265, MJPEG, YUY2, NV12
USB Video ResolutionsUp to 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25
3G-SDI Video Resolution1080P60/P50/P30/P25, 720P60/P50
ColorSilver Gray
Electrical 2
Power ConnectorDC 12V
Power Consumption<15 W
Mechanical 3
Inverted InstallationSupported
Dimensions (L×W×H)242 × 145 × 163 mm
Weight≤1.2 kg
Environment 5
Storage InterfaceUp to 256 GB
Operating Temperature0°C ~ 40°C
Operating Humidity10% RH ~ 90% RH
Storage Temperature-20°C ~ 40°C
Storage Humidity10% RH ~ 95% RH
Compliance 5
White BalanceAuto, Manual, One-Push, Auto Track, Static Color Temperature
Network Interface1 × RJ-45, 10M/100M Adaptive Ethernet Port, Optional PoE
USB Interface1 × USB 3.0
Audio Interface1 × LINE IN, 3.5 mm Audio Interface
Control Interface1 × RS-232 IN, 1 × RS-232 OUT / RS-485
Other 27
ModelD6284
Image Sensor1/2.8-inch CMOS, 2.14 Megapixels
Focal Length4.7–94 mm / 3.9–46.8 mm
IrisF1.6–F3.5 / F1.6–F2.8
Field of View59.5°–2.9° / 72.5°–6.3°
Optical Zoom20× / 12×
Focusing SystemAuto, Manual, One-Push, PTZ-Triggered
GainAuto, Manual
Exposure ControlAuto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Backlight CompensationSupported
Wide Dynamic RangeSupported
Digital Noise Reduction2D/3D
S/N Ratio≥50 dB
Menu LanguageEnglish / Chinese
Horizontal Range-170° ~ +170°
Vertical Range-30° ~ +90°
Horizontal Rotation Speed0.1°/s ~ 120°/s
Vertical Rotation Speed0.1°/s ~ 80°/s
Image FlipSupported
Number of Presets256 Presets
HDMI Output1 × HDMI
Network FeaturesUp to 1080P60, H.264/H.265, ONVIF, RTSP, RTMP, SRT, TCP, UDP, AAC Audio Compression, Multiple Streams, Optional NDI
USB ProtocolUVC 1.1
USB Audio FormatPCM (UAC)
3G-SDI Output1 × 3G-SDI
Control ProtocolVISCA (Supports Daisy Chain), Pelco-P, Pelco-D
Address Range1–7
