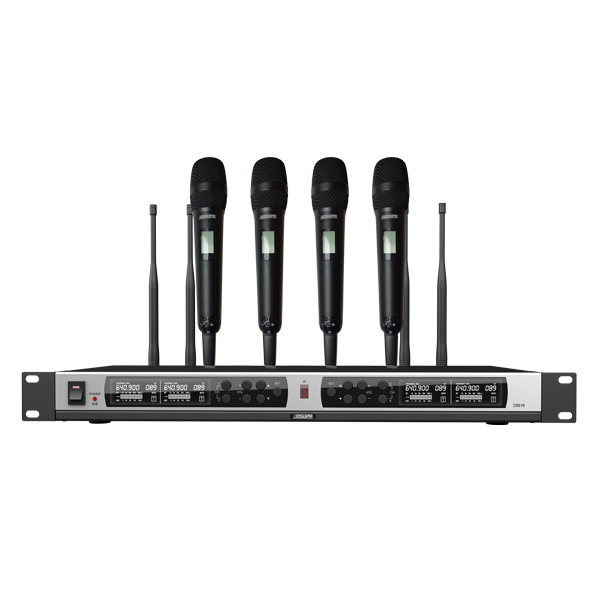

D5841 True Diversity UHF Wireless Microphone System (4 hand-held mic)

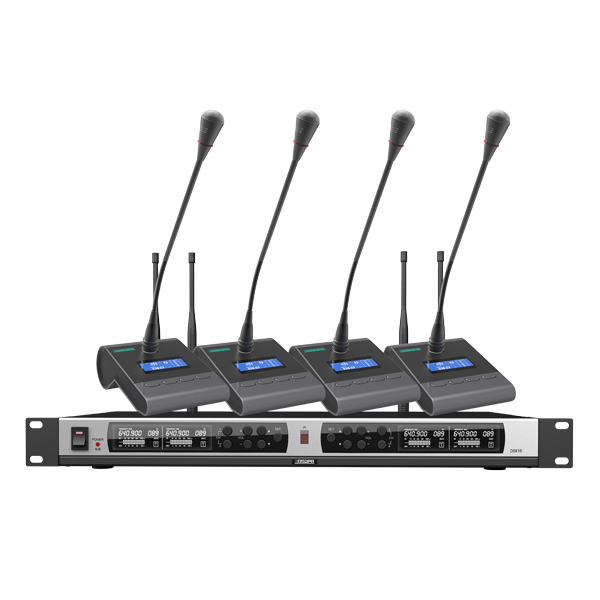

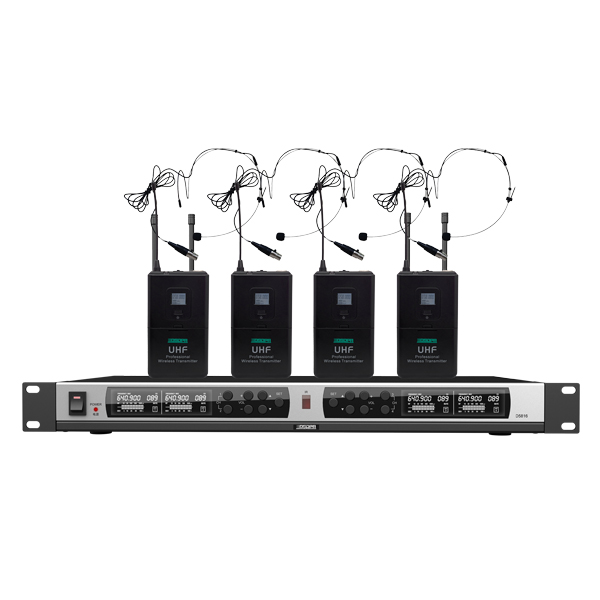

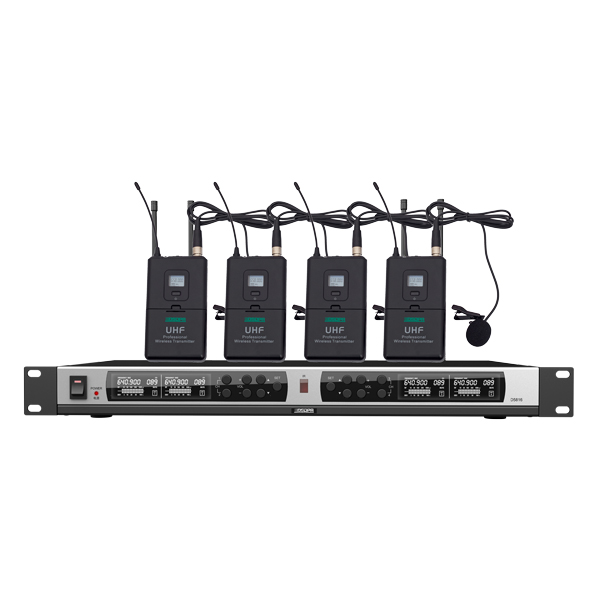

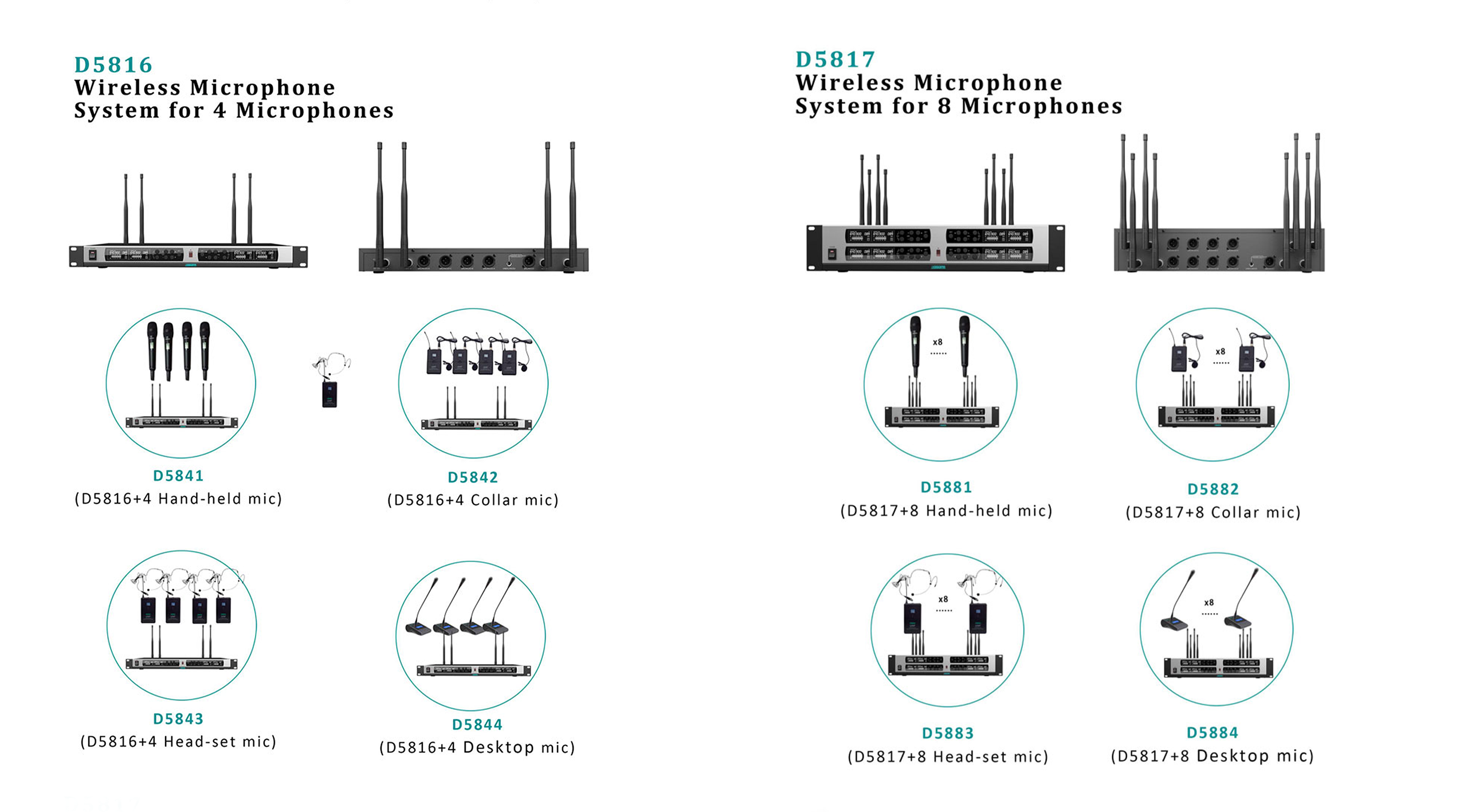

This product is a professional wireless microphone system. D5816 is the wireless microphone receiver, which can be combined with several kinds of transmitters to form a wireless microphone system. The combination set includes D5841 (UHF Wireless Microphone System+4 Handheld Wireless Microphones), D5842 (UHF Wireless Microphone System+4 Clip Wireless Microphones+4 Waistband Transmitters), D5843 (UHF Wireless Microphone System+4 Headset Wireless Microphones+4 Waistband Transmitters), and D5844 (UHF Wireless Microphone System+4 Desktop Wireless Microphones).
PriceRs. 107,500 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Electrical 3
Frequency Range632–695.25 MHz
Frequency StabilityWithin ±0.005%
Maximum Frequency Deviation±45 KHz
Mechanical 4
Package Dimensions (L×W×H)530 × 335 × 220 mm
D5841/D5841L Gross Weight6.2 kg
D5842/D5843/D5842L/D5843L Gross Weight5.2 kg
D5844/D5844L/D5845L Gross Weight6.5 kg
Environment 1
Operating Temperature-10°C ~ +40°C
Other 10
System IndicatorsParameters
Modulation ModeWideband FM
Adjustable Range60 MHz
Number of Channels200
Channel Interval250 KHz
Dynamic Range88 dB
Audio Response120 Hz–16 KHz (±3 dB)
Comprehensive S/N Ratio>73 dB
Comprehensive Distortion≤1%
Effective Range150–200 m (in open environment)

D5841 True Diversity UHF Wireless Microphone System (4 hand-held mic)
