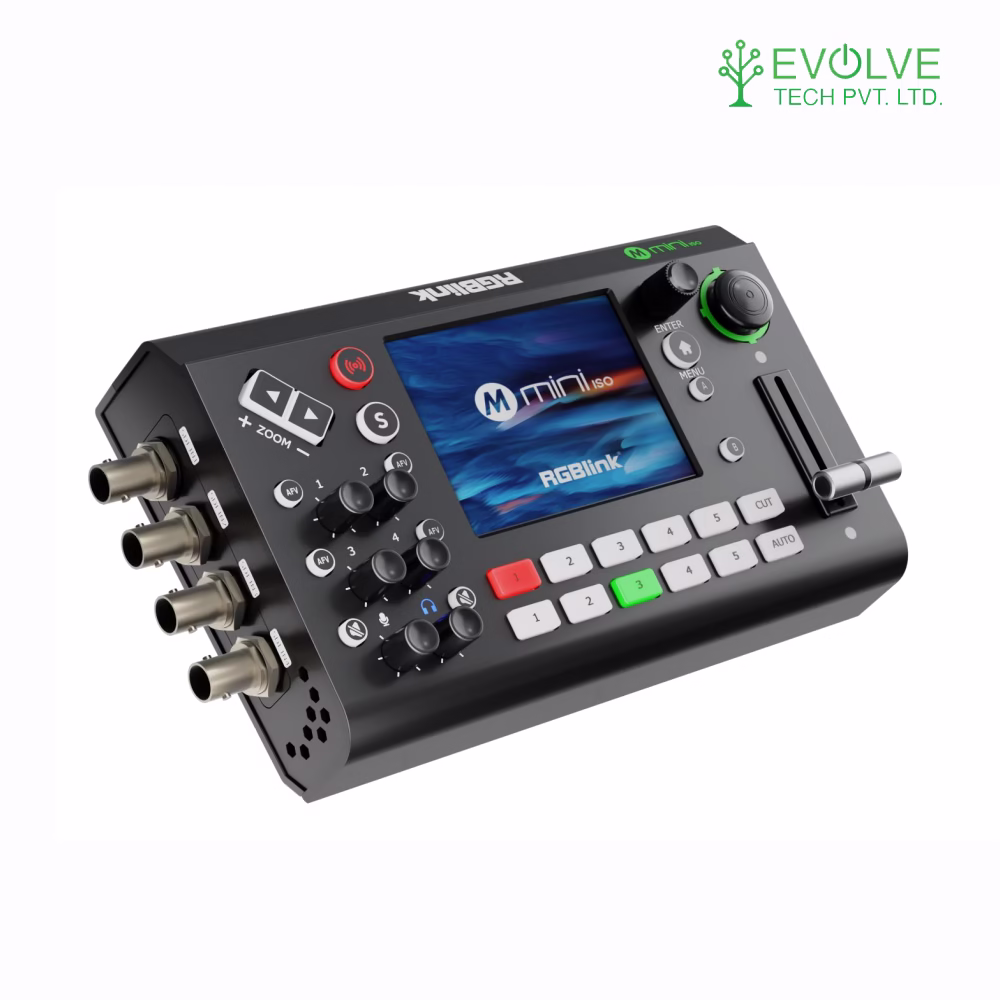

RGBlink Mini-ISO Video Processor
₨ 129,600.00
The RGBlink Mini-ISO is a compact 10-channel video processor designed for professional live streaming and video production. It supports 4 HDMI, 4 SDI, 1 UVC, and 1 NDI input, with dual HDMI outputs and USB webcam streaming. Featuring a 3.5-inch touchscreen, PTZ camera control, audio synchronization, RTMP(S) multi-platform streaming, and one-key USB recording, it allows flexible, high-quality video management. Ideal for conferences, live events, and broadcasts, the Mini-ISO ensures seamless production in a portable, user-friendly design.
Description
RGBlink Mini-ISO
| Function | Parameters | Description |

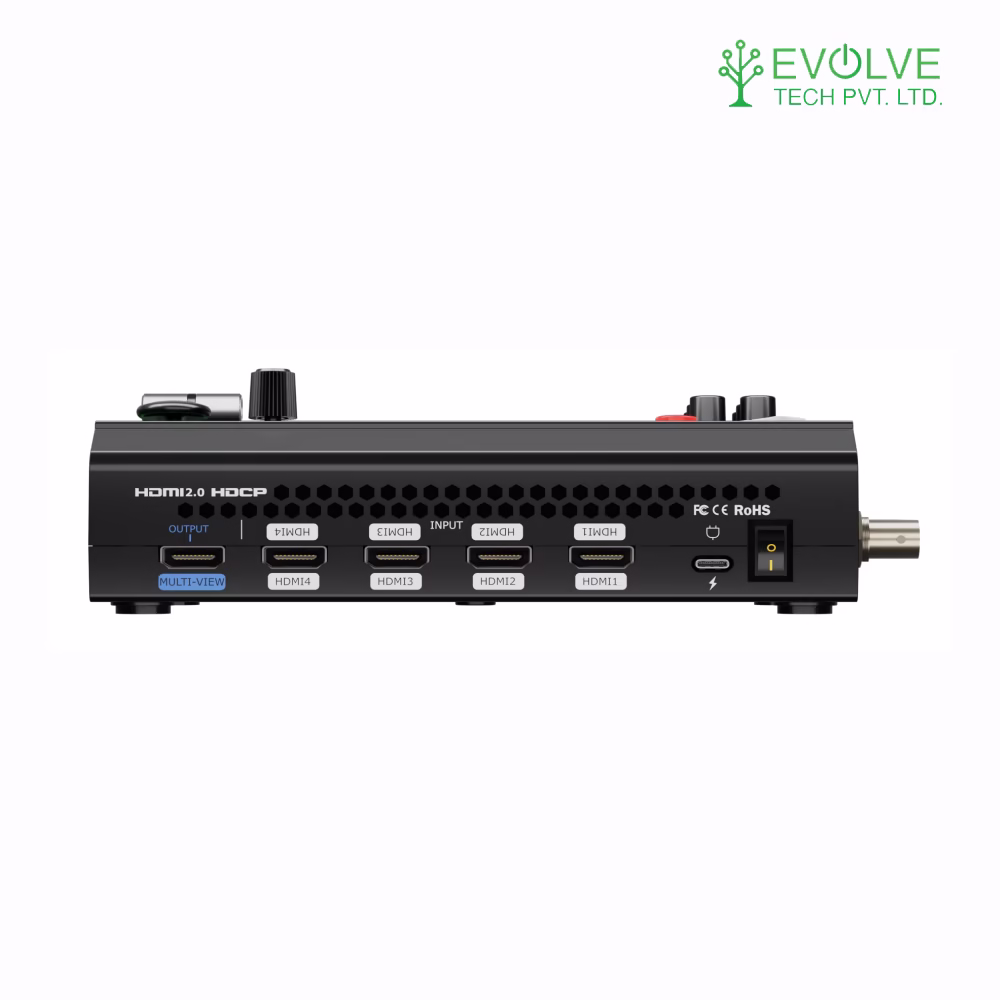

| Input | HDMI 4K | 4×HDMI-A |
| UVC (USB Cam) | 1×USB-A (Record) | |
| SDI | 4×BNC | |
| Media | 1×USB-A (Record) | |
| NDI | 1×RJ45 (LAN) | |
| Output | HDMI 2K | 2×HDMI-A |

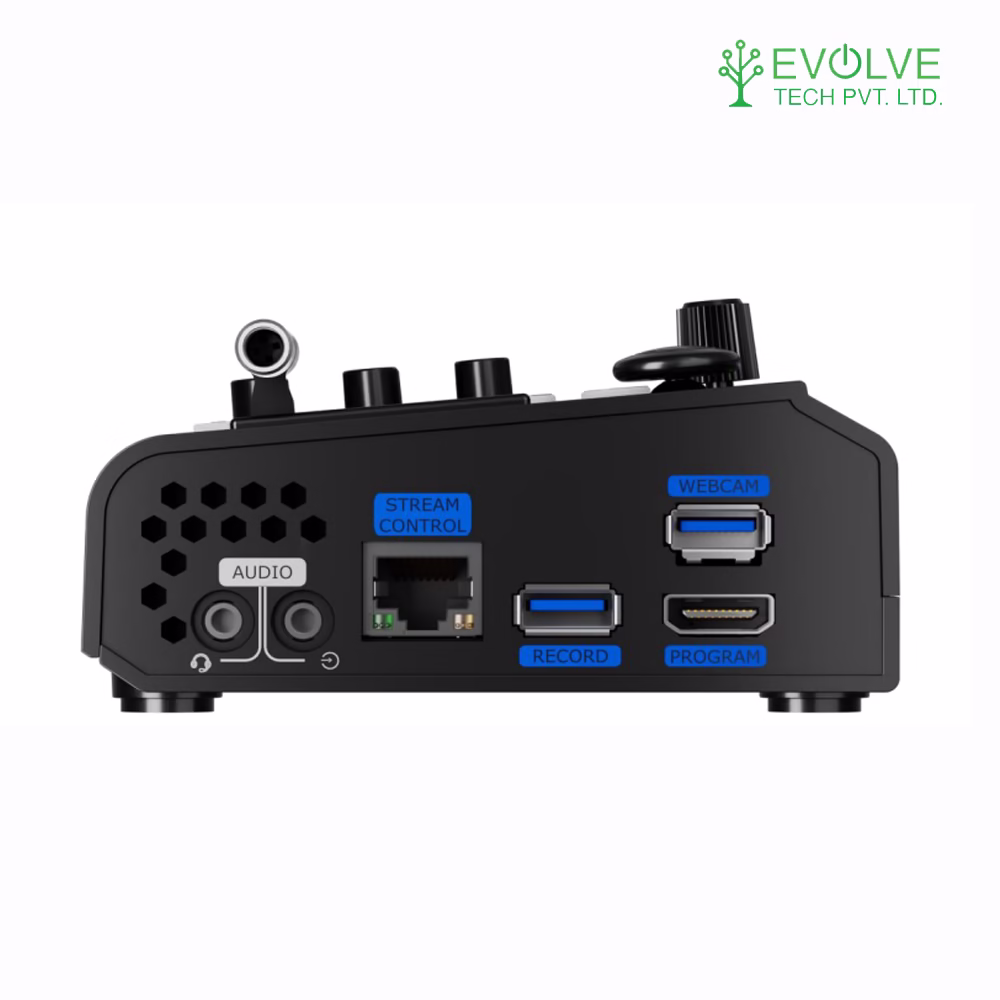

| USB (Record) | 1×USB-A (Record) | |
| USB (Stream) | 1×USB-A (Webcam) | |
| RTMP(S)/NDI | 1×RJ45 (LAN) | |
| Audio | Embedded Audio Input 4×HDMI-A | |
| External Digital Input 1×USB-A (Record) | ||
| External Analog Input 2×3.5mm mini-Jack | ||
| External Analog Ouput 1×3.5mm mini-Jack | ||
| Communication/Stream/Upgrade | LAN | 1×RJ45 |
| Power | Power Supply | 1×USB-C |
| Input Resolutions | HDMI 2.0 | |
| SMPTE | 720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60 | |
| VESA | 1024×768p@60 | 1280×720p@60 | 1280×768p@60 | 1280×800p@60 | 1280×1024p@60 | 1360×768p@60 | 1366×768p@60 | | |
| 1440×900p@60 | 1600×1200p60 | 1680×1050p@60 | 1920×1080p@60 | 1920×1200p@60 | 3840×2160p@60 | 4096×2160p@60 | ||
| SDI | 720p@50/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | |
| UVC | 1080p@60 | |
| Output Resolutions | HDMI 1.3 | 1280×720p@50/60 | 1920×1080p@23.98/24/25/29.97/30/50/59.94/60 |
| USB | 1280×720p@60 | 1920×1080p@24/25/30/50/60 | |
| Video | Color Space | RGB 8bit | YCbCr 4:4:4 8bit | YCbCr 4:2:2 8bit |
| Video Latency | <3 frames | |
| Audio | Audio Format | PCM/2ch/24bit/48kHZ |
| Sampling Rate | 48K | |
| Bitrate | 24bit | |
| Record/Storage | Record Formats | MP4 (up to 16Mbps) |
| Disk Formats | FAT32 | exFAT | |
| Supported Standards | HDMI | 2 |
| HDCP | 1.4 | |
| USB | 3 | |
| SDI | SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI | |
| NDI | NDI | HX2 | |
| Compatability | USB Power Delivery (PD) 3.0 | |
| Supported Cables | Certified USB PD Aware | |
| Input Voltage | 12V/2.5A | |
| Maximum Power | 30W | |
| Temperature | 0℃~60℃ | |
| Humidity | 10%~85% | |
| Net Weight | 0.60kg | |
| Packaged Weight | 1.38kg | |
| Net Dimension | 197mm × 113mm × 60mm | |
| Packaged Dimension | 255mm × 145mm × 85mm |
