LCM Series 2.5 Indoor
₨ 13,000.00

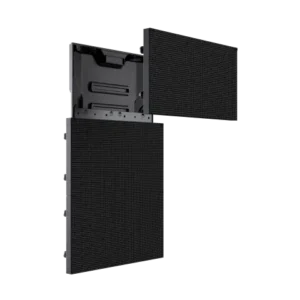

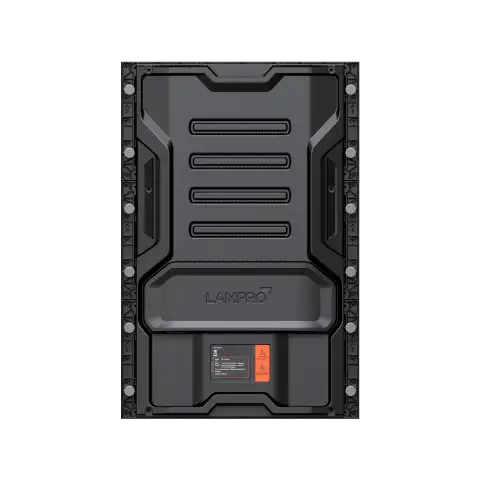

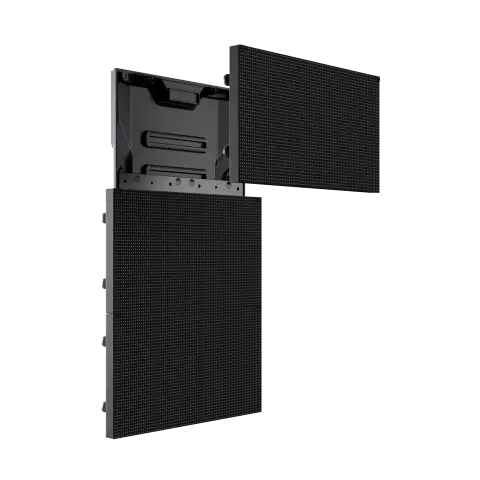

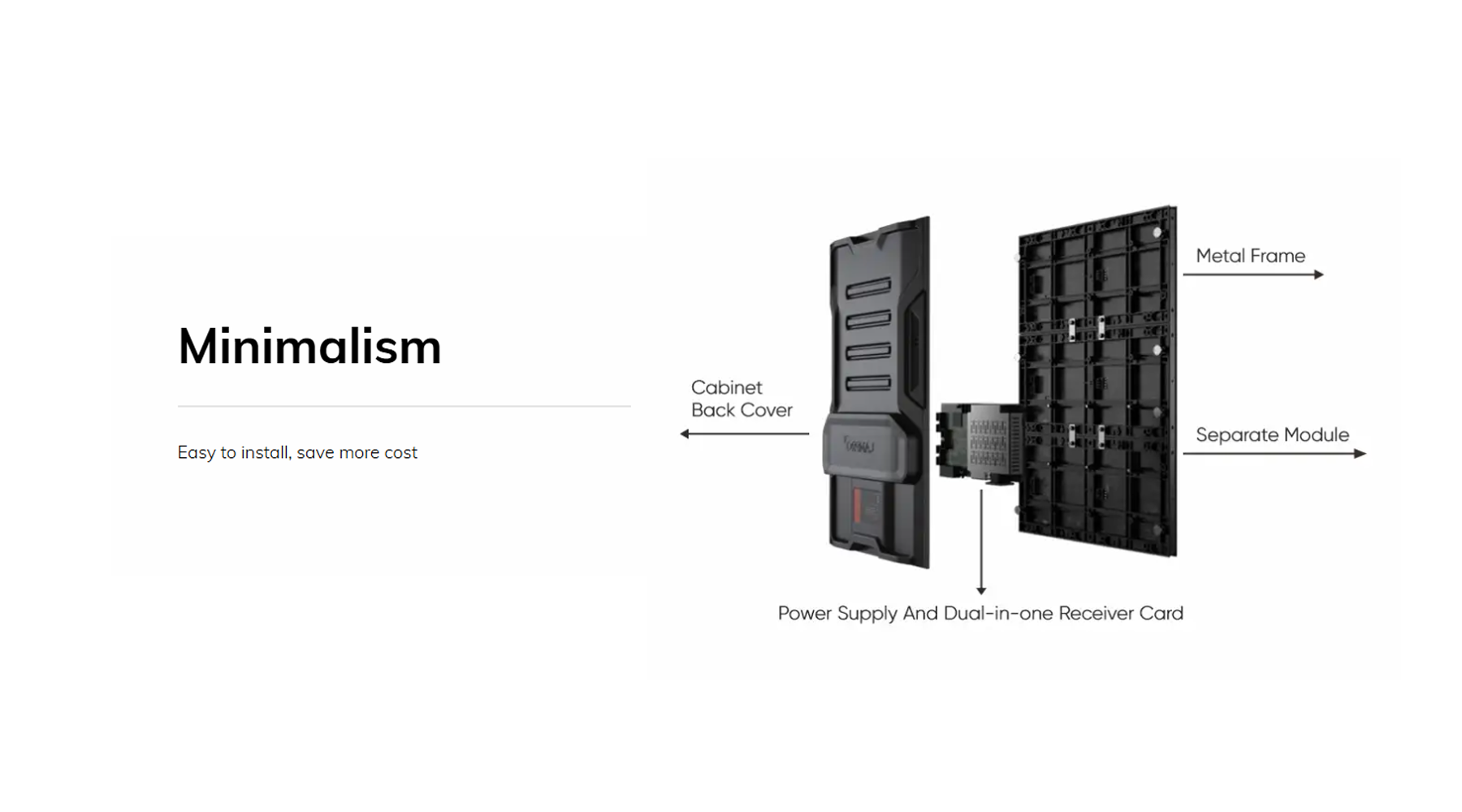

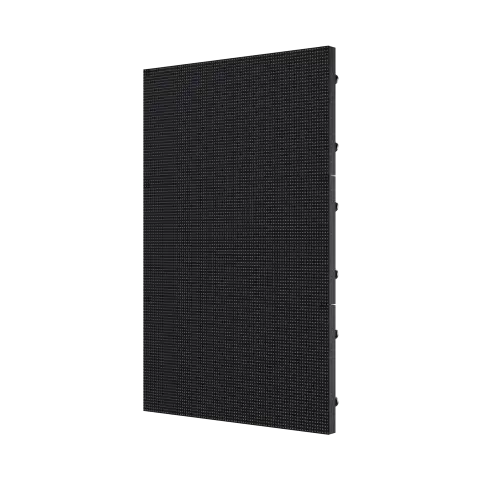

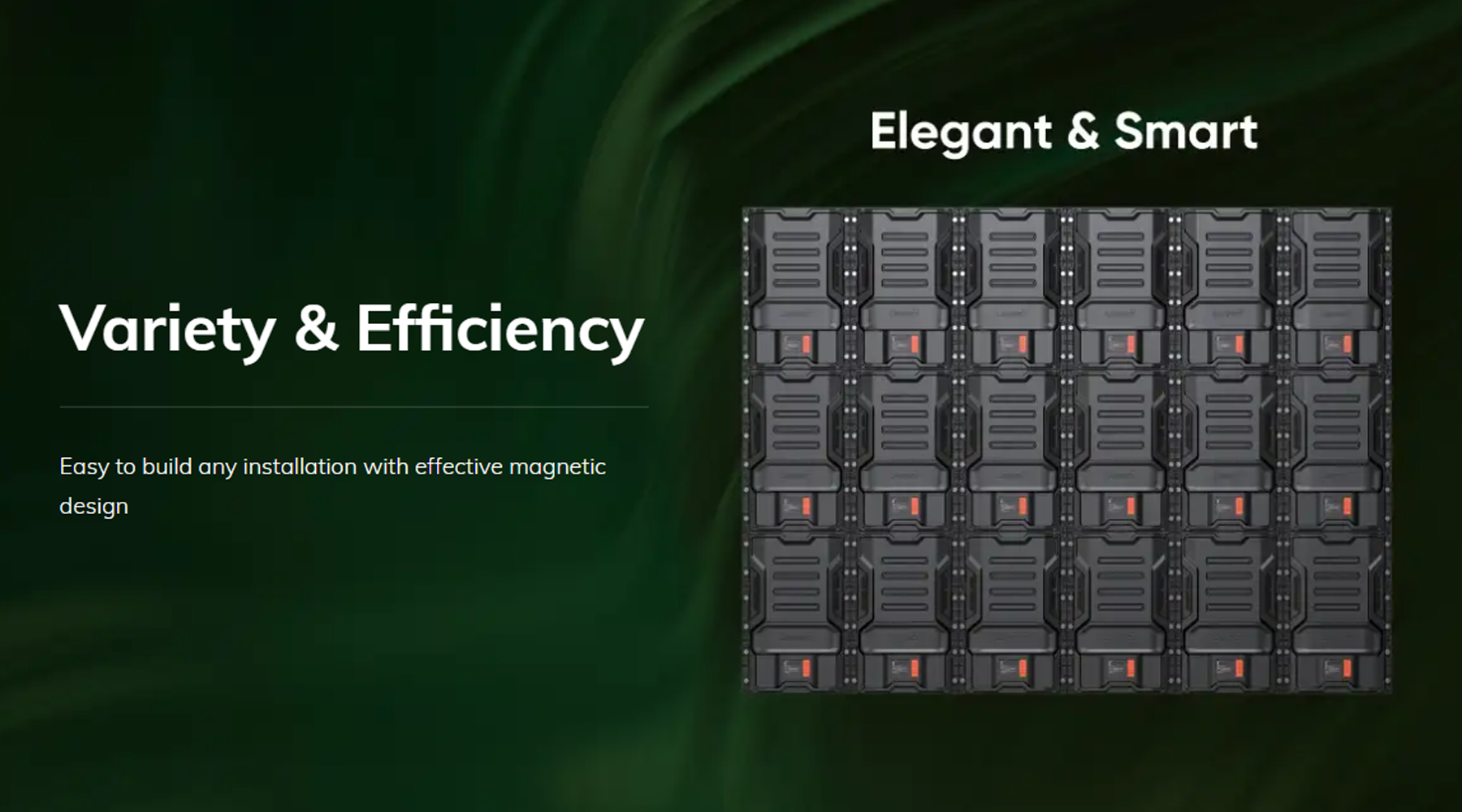

The LAMPRO LCM LED Module delivers high-quality visual performance with fine pixel pitch options (1.86mm–2.5mm), making it ideal for indoor HD displays. It supports flexible installation with seamless splicing and multiple cabinet sizes for creative screen designs. Designed for efficiency, it features stable performance, easy maintenance, and fast installation through advanced module connectivity. Built for versatility, it suits applications like retail displays, events, and commercial environments.
Description
LCM Series 2.5
| Parameter | Value |
| Pixel Pitch | 2.5mm |
| LED Type | SMD2121 |
| Module Resolution (W×H) | 128X64=8192 Pixels |
| Pixel density (pixels/sq.m.) | 160000 dot/m² |
| Module Size (WxH) | W320mmxH160mm |

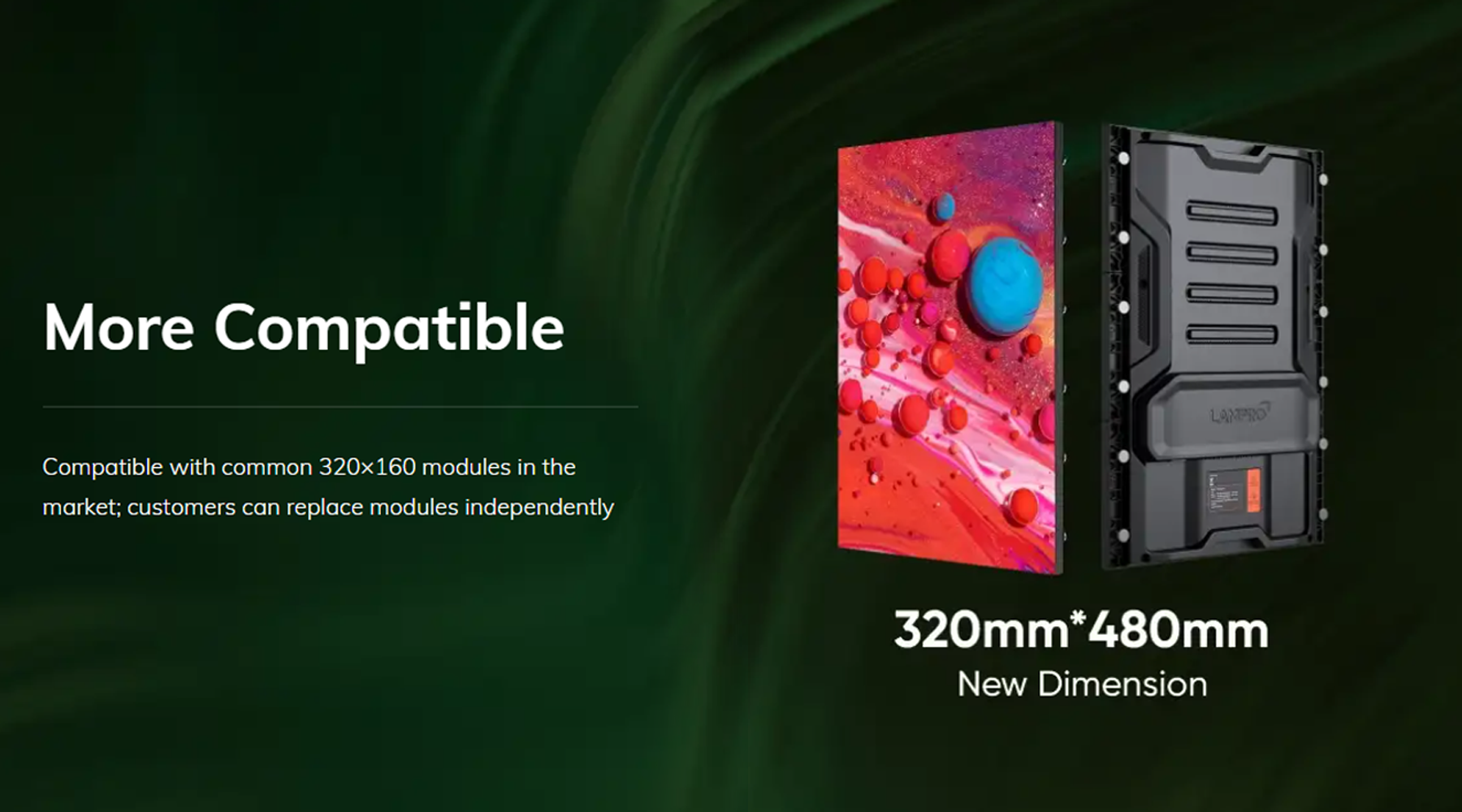

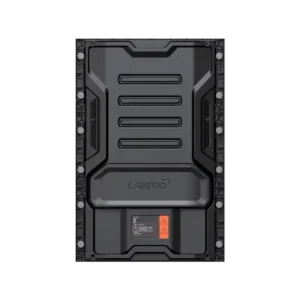

| Cabinet Size (WxHxD) | 320mmx480mmx52.6mm (With Module, Kit, Back Cover) |

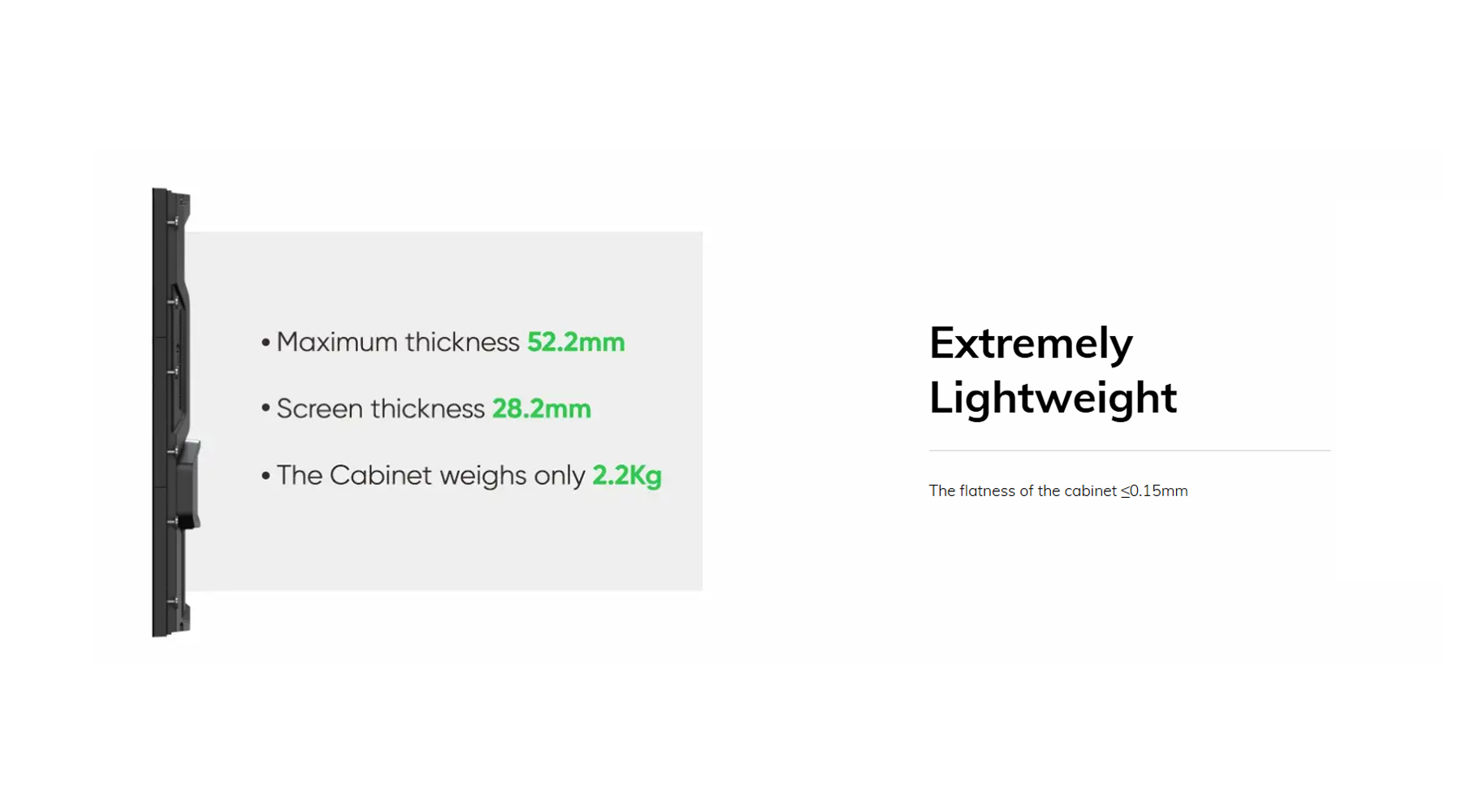

| Cabinet Weight (kg/panel) | 2.2±0.1kg |
| Maintenance | Full front maintenance |
| Ingress Protection | IP30 |
| Planeness | ≤0.5mm |
| Cabinet Material | Plastic |
| Single-dot Brightness Calibration | Support |
| Brightness | 450 cd/m² |
| Color Temperature | 2000K ~ 9300K Adjustable |
| Beam Angle (Hor/Ver°) | 140°/140° |
| Brightness/Color Uniformity | ≥ 98% |
| Contrast Ratio | 5000:1 |
|
Input Power | 312 W/m² |
|
Input Power | 104 W/m² |
| Power Supply Input Voltage | AC90 ~ 132V/ AC186 ~ 264V, Frequency 47-63 (Hz) |
| Frame Changing Frequency | 60Hz |
| Refresh Rate | ≥ 4200Hz |
| Processing Depth | 12–14Bit |
| Video Support | 2K, 4K |
| Life Span (hrs) | 100000hrs |
| Working Temp/Humidity (°C/RH) | -20°C ~ 45°C / 10%~50%RH (No Condensation) |
| Storage Temp/Humidity (°C/RH) | -20°C ~ 50°C / 10%~60%RH (No Condensation) |
