Huidu

Huidu VP210H Video Processor

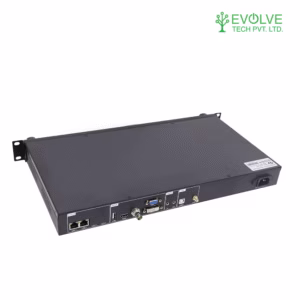

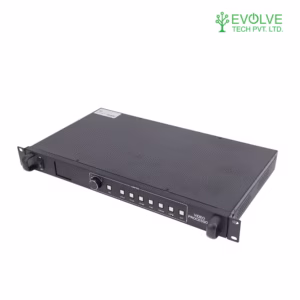

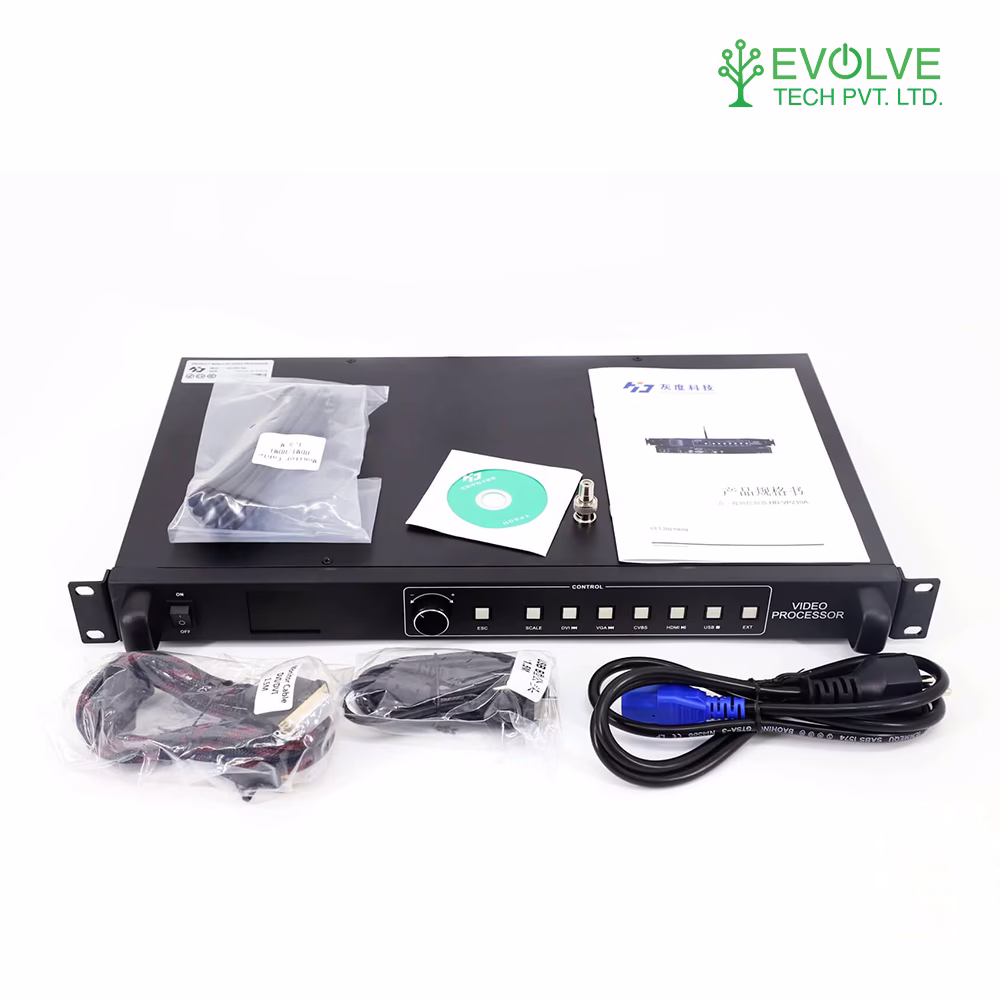

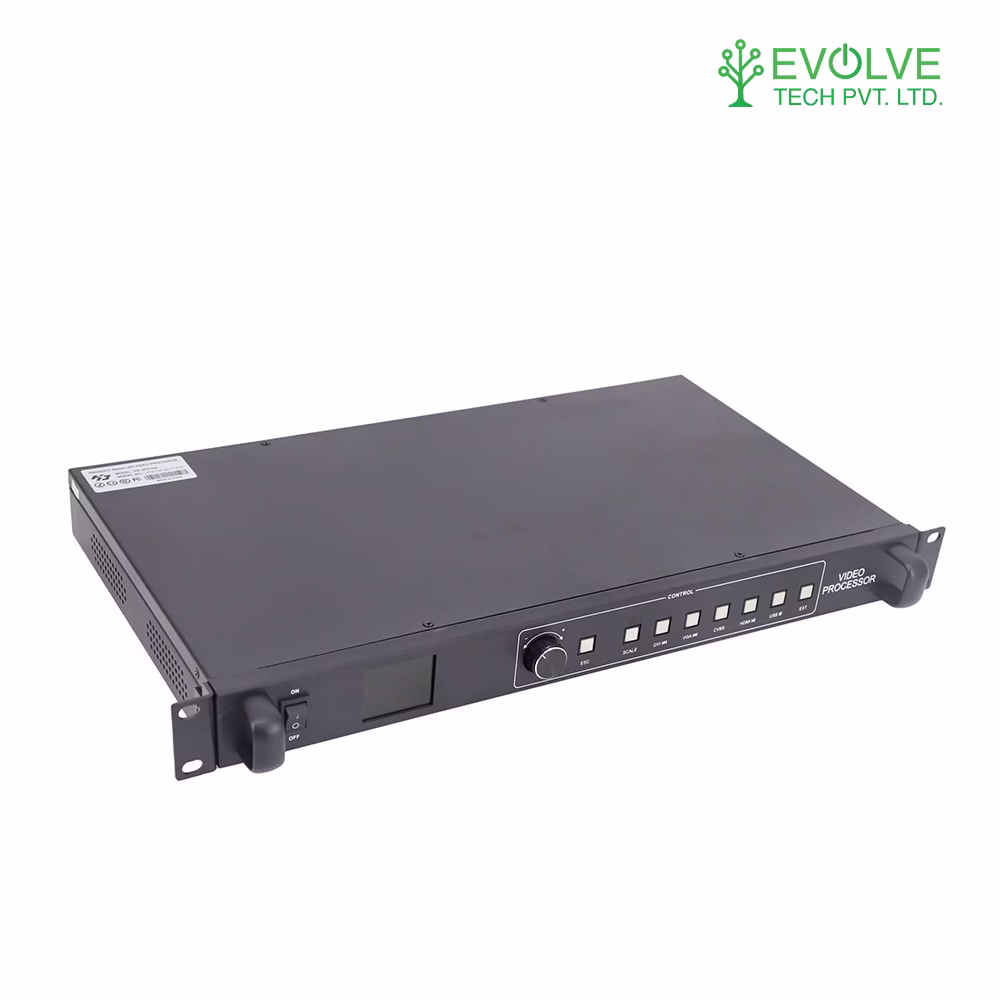

The Huidu HD-VP210H is a versatile 3-in-1 LED video processor combining traditional video processing, synchronous sending card, and USB playback functionalities. It supports up to 1.3 million pixels (maximum width: 3840, maximum height: 2500), making it suitable for large-scale LED displays. The device offers multiple input options, including HDMI, DVI, VGA, CVBS, and USB, with dual Gigabit Ethernet outputs for seamless signal transmission. Ideal for applications in hotels, shopping malls, conference rooms, exhibitions, and studios, the HD-VP210H simplifies setup and enhances display reliability.
Pixel capacity1.3 million px
Max width / height3840 × 2500
Live inputs2× HDMI · DVI · VGA · CVBS · USB
Other Huidu processors Compare all →
VP210H1.3 million pxThis oneVP620A3.9 million pxR712131,072 px
PriceRs. 28,000 per unit · excl. VAT

Supply price in NPR. Delivery, structure, processor, installation and VAT are itemised in your quote; project pricing available.

Request itemised quote Ask on WhatsApp
Official warranty Installed by our engineers Spares in Kathmandu
Specifications

Spec sheet

Datasheet (PDF)
Electrical 1
Power switchControls AC power inpu
Other 12
KeyDescription
LCD displayDebugging displays menus, screen parameters and other information
IRReceive infrared remote control
MENUPress the knob to enter submenu or confirm selection Rotate the knob to select menu items or adjust parameters
ESCEscape key/return key
SCALEPartial/full screen switch button
HDMI1Select HDMI signal to play/play the previous U disk program
HDMI2Select HDMI signal to play/play the next U disk program
DVISelect DVI signal playback/U disk program playback and pause
VGA/CVBSSelect VGA/CVBS signal playback
USBSelect to play U disk program/stop playing U disk program
FREEZEFreeze with one click

Huidu VP210H

Compare

Other pitches in Huidu

Huidu VP210H Video ProcessorThis productHuidu HD-W63 Controller cardHuidu HD-W62 Control CardHuidu HD-W60 Control Card
Pixel pitch————
Best viewed from————
Brightness—Support 3 modes: adjust by hand, adjust by sensor automatically, adjust by time automatically.——
EnvironmentProcessorProcessorProcessorProcessor
PriceRs. 28,000 per unitRs. 6,500 per unitRs. 5,800 per unitRs. 5,000 per unit
Questions buyers ask

Before you request a quote

Which processor does my LED wall need?
It depends on the panel resolution and the number of receiving cards. Tell us the wall size and pitch and we match the sending card or all-in-one processor.
Do you configure it?
Yes — every processor we sell is configured and tested with the wall before handover.
How long does installation take?
Most indoor walls up to 10 m² are installed and calibrated in one to two days; outdoor boards depend on the structure and permits. We survey the site first and confirm the schedule in the quote.
What warranty do you give?
Official manufacturer warranty on panels and controllers, serviced by our own engineers in Kathmandu with spares in stock. Warranty terms are itemised in every quote.
Do you deliver and install outside Kathmandu?
Yes. We have installed in Pokhara, Butwal, Bhairahawa, Dang, Dhangadhi, Lumbini and across the valley. Delivery and travel are itemised in the quote.
