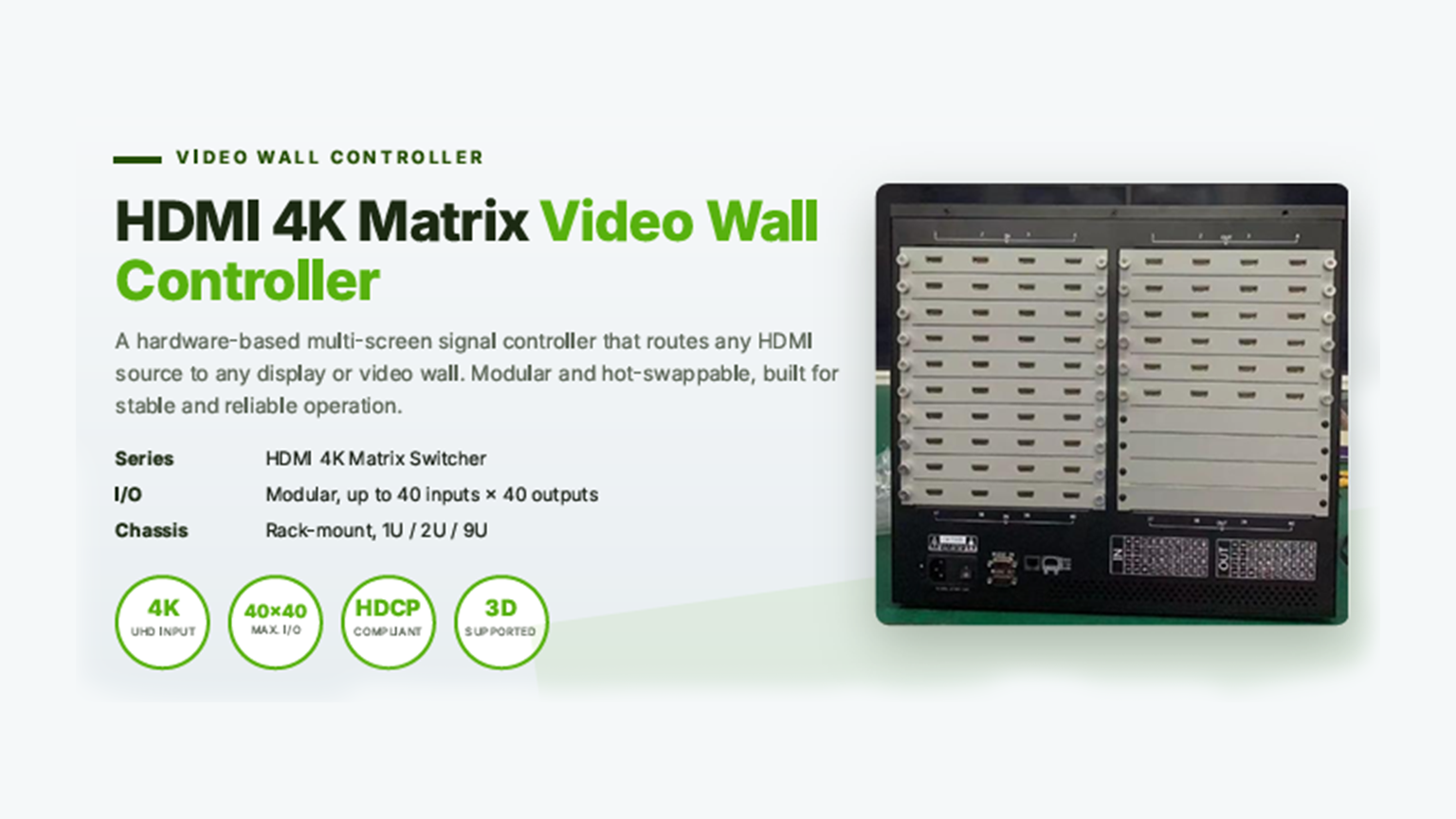

HDMI 4K Matrix Video Wall Controller

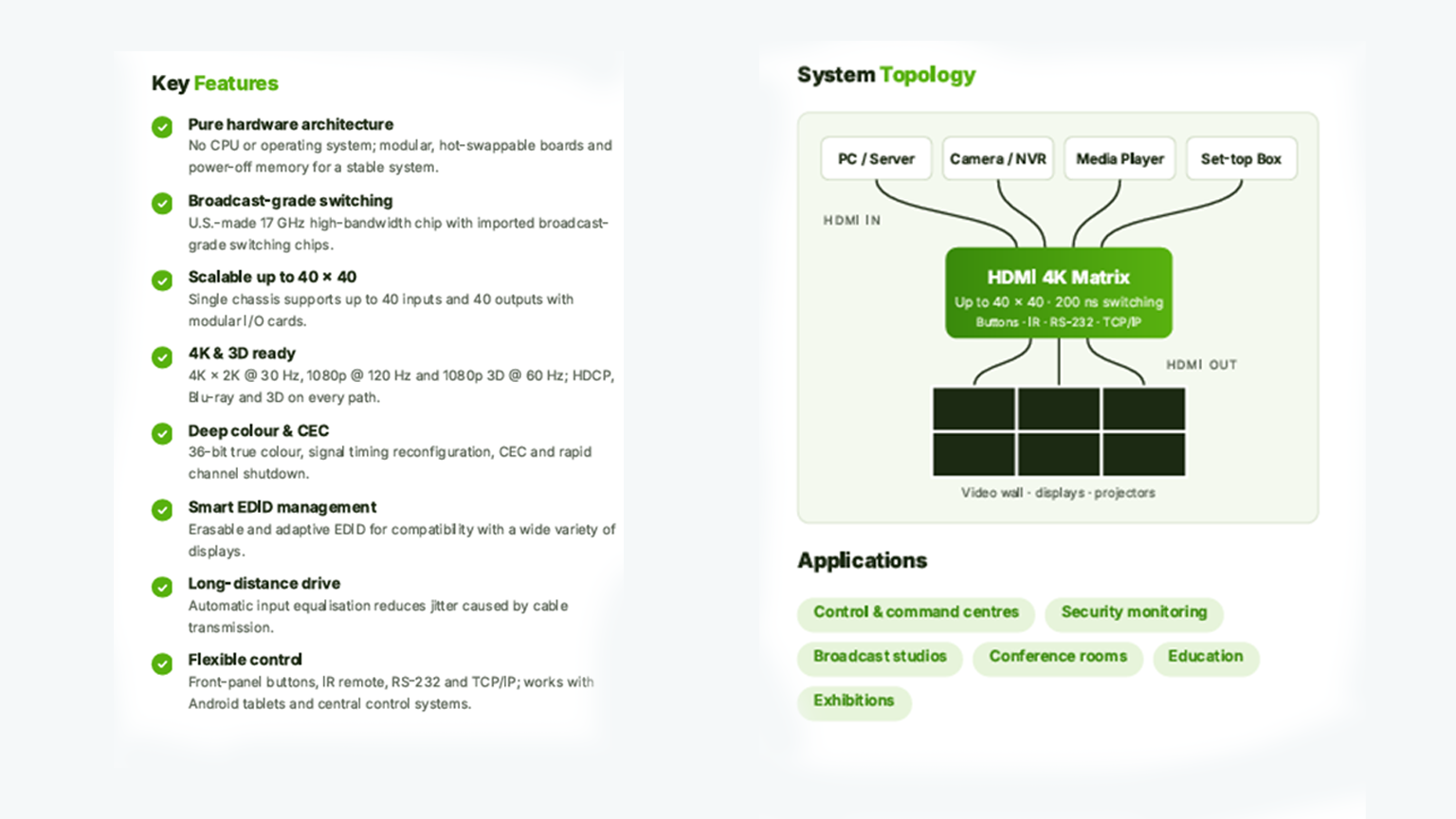

Professional hardware-based HDMI matrix switching system supporting up to 40×40 modular inputs and outputs, with 4K × 2K @ 30Hz resolution, 200 ns switching speed, 4.5 Gbps bandwidth, 36-bit true colour, HDCP and 3D support. Features rack-mountable 1U/2U/9U chassis, hot-swappable I/O cards, adaptive EDID management, and multiple control interfaces including RS-232, TCP/IP, IR remote, and front-panel push buttons.
Description
New wpDataTable
| Parameter | Technical Specification |
| A. General Specifications | |
| Product Type | Hardware-based HDMI Matrix Switcher |
| Architecture | Pure Hardware (No CPU / Operating System) |
| Series | HDMI 4K Matrix Switcher |
| Maximum I/O Capacity | Up to 40 Inputs × 40 Outputs |
| Chassis Type | Rack-mountable |
| Available Chassis | 1U / 2U / 9U |
| I/O Configuration | Modular, Hot-swappable I/O Cards |
| Input/Output Interface | HDMI-A, 19-pin Female |
| Maximum Resolution | 4K × 2K @ 30Hz |
| Switching Speed | 200 ns (Maximum) |
| Maximum Transmission Latency | 5 ns (±1 ns) |
| Interface Bandwidth | 4.5 Gbps |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | Depends on chassis size and number of channels |
| Operating Temperature | -20°C to +70°C |
| Humidity | 10%–90% |
| Weight | Depends on chassis size and configuration |
| B. Video Performance | |
| HDMI Protocol | HDMI 1.4a / HDMI 1.3 |
| HDCP | Supported |
| Signal Type | HDMI-A Fully Digital T.M.D.S. |
| Gain | 0 dB |
| Pixel / Interface Bandwidth | 255 MHz / 4.5 Gbps |
| Clock Jitter | Less than 0.15 Tbit (as stated in datasheet) |
| Rise / Fall Time | Less than 0.3 Tbit (20%–80%) |
| Colour Depth | 36-bit True Colour |
| 4K Resolution | 4K × 2K @ 30Hz |
| Full HD Resolution | 1080p @ 120Hz |
| 3D Resolution | 1080p 3D @ 60Hz |
| CEC | Supported |
| Blu-ray Compatibility | Supported |
| C. Video Input Specifications | |
| Signal Intensity | T.M.D.S. ±0.4 Vpp |
| Minimum / Maximum Level | T.M.D.S. 2.9 V / 3.3 V |
| EDID | Universal EDID, Erasable & Adaptive |
| Impedance | Less than 75 Ω |
| DC Offset | 15 mV Maximum |
| Recommended Cable Distance | Less than 15 metres |
| Supported Resolution at Distance | 3840 × 2160 / 1920 × 1200 @ 60Hz |
| Cable Requirement | Certified HDMI Cable |
| D. Video Output Specifications | |
| Minimum / Maximum Level | T.M.D.S. 2.9 V / 3.3 V |
| Impedance | Less than 75 Ω |
| Recommended Cable Distance | Less than 15 metres |
| Cable Requirement | Certified HDMI Cable |
| E. Control Interface | |
| Front Panel | Push-button Control |
| IR Remote | Infrared Remote Control |
| RS-232 Input | RS-232 Female Connector |
| RS-232 Output | RS-232 Male Connector |
| Network Control | TCP/IP |
| Tablet Control | Android Tablet Compatible |
| Centralized Control | Compatible with Central Control Systems |
